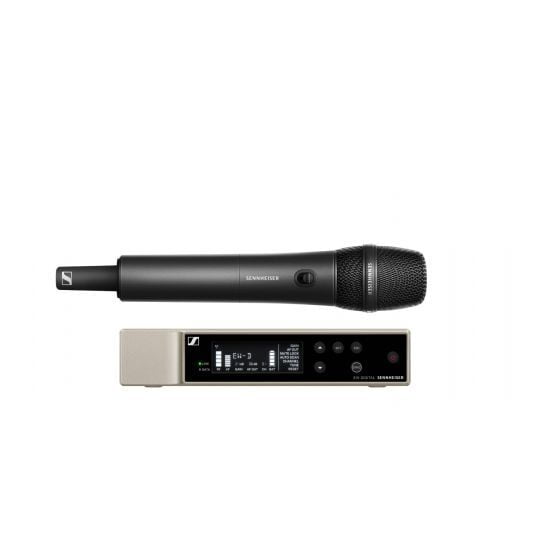

Sennheiser - EW-D 835-S SET (S1-7) Digital wireless handheld sett

Frequency range

470.2 - 526 MHz

520 - 576 MHz

552 - 607.8 MHz

606.2 - 662 MHz

630 - 662 MHz

662 - 693.8 MHz

823.2 - 831.8 MHz & 863.2 - 864.8 MHz

925.2 - 937.3 MHz

1785.2 - 1799.8 MHz

THD, total harmonic distortion

≤ -60 dB for 1 kHz @ -3 dBfs input level

Operating temperature

-10 °C - +55 °C (14 °F - 131 °F)

Operating relative humidity

5 - 95 % (non-condensing)

Audio frequency response

20 Hz - 20 kHz (-3 dB) @ 3 dBfs

System Latency

1.9 ms

EW-D EM

Dimensions

212 x 44 x 189 mm

Weight

approx. 1000 g (without antennas and power supply)

Current consumption

≤ 300 mA

Input voltage range

11 - 13 V ⎓

Audio output level

18 dBu max.

Transmission power

BLE: max. 10 mW EIRP

MMD 835 (Microphone Module)

Dimensions

405 x 350 x 73 mm

Sound pressure level (SPL)

154 dB

Transducer principle

dynamic

Weight

3.1 kg

Pick-up pattern

cardioid

Sensitivity

2.1 mV/Pa

EW-D SKM-S

Weight

approx. 304 g (incl. MMD 835 microphone module)

approx. 195 g (without microphone module)

Power supply

2 AA batteries 1.5 V (alkaline manganese)

or BA 70 rechargeable battery pack

Current consumption

< 300 mA

Input voltage range

2.0 - 4.35 V

Transmission power

Audio link: 10 mW

ERP (Range Y1-3): 12 mW ERP

BLE: max. 10 mW EIRP

Dimensions

50 x 268 mm (incl. MMD 835 microphone module)

40 x 200 mm (without microphone module)
