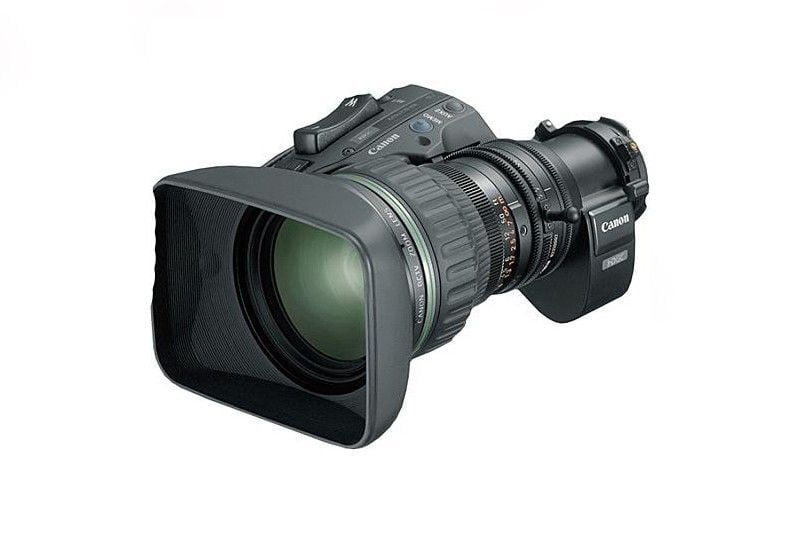

Canon KJ17ex7.7B IRSE 2/3" 17x HDgc Digital ENG/EFP HDTV Standard Lens
$9,626.23
Tags:
The KJ17ex7.7B and the HDgc line of lens have been specifically designed for low cost acquisition and this lens is particularly well suited to reality TV, newsgathering and other low budget HD productions.
Product Details
SPECIFICATION
| Lens Model Number | KJ17ex7.7B IRSE / IASE | |
| Image Size | 2/3” | |
| Zoom Ratio | 17x | |
| Built-in Extender | 2.0x | |
| Range of Focal Length (with Extender) | 7.7 - 131mm 15.4 - 262mm | |
| Maximum Relative Aperture (with Extender) | 1:1.8 at 7.7 - 102.5mm 1:2.3 at 131mm 1:3.6 at 15.4 - 205.0mm (2.0x) 1:4.6 at 262mm (2.0x) | |
| Angular field of view (with Extender) | 4:3 Aspect Ratio (8.8 x 6.6mm) | 59.5° x 46.4° at 7.7mm 3.85° x 2.89° at 131mm 31.9° x 24.2° at 15.4mm (2.0x) 1.92° x 1.44° at 262mm (2.0x) |
| 16:9 Aspect Ratio (9.6 x 5.4mm) | 63.9° x 38.6° at 7.7mm 4.2° x 2.36° at 131mm 34.6° x 19.9° at 15.4mm (2.0x) 2.1° x 1.18° at 262mm (2.0x) | |
| Minimum Object Distance (M.O.D.) from lens front | 0.6m (10mm with Macro) | |
| Object Dimensions at M.O.D. (with Extender) | 4:3 Aspect Ratio (8.8 x 6.6mm) | 63.1 x 47.3cm at 7.7mm 3.8 x 2.9cm at 131mm 31.6 x 23.7 cm at 15.4mm (2.0x) 1.9 x 1.5cm at 262mm (2.0x) |
| 16:9 Aspect Ratio (9.6 x 5.4mm) | 68.5 x 38.5 cm at 7.7mm 4.2 x 2.4 cm at 131mm 34.3 x 19.3 cm at 15.4 mm (2.0x) 2.1 x 1.2 cm at 262mm (2.0x) | |
| Size (W x H x L) | 159.3 x 106.6 x 197.8mm | |
| Weight | IRSE 1.48Kg (3.26lbs) IASE 1.56Kg (3.44lbs) |
