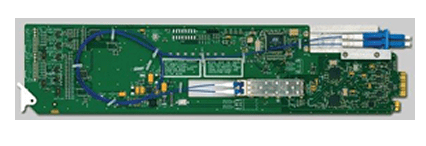

Ross Video FDR-6603-H 3G/HD/SD SDI High Sensitivity Dual Fiber Receiver
Non-returnable
$3,898.82
Tags:
Dual High Sensitivity Optical to Electrical Converter
Dual channel High Sensitivity SDI optical to electrical converter supporting data rates from 143Mb/s to 2.97Gb/s.
High sensitivity optical receivers provide an additional 10dB to your link budget over the standard optical receivers.
The -R2S high density split rear module can accommodate up to 2 FDR-6603-H cards, maximizing the number of conversion channels in a frame. In this configuration, the OG3-FR supports up to 40 independent channel solutions, providing ultra-high density conversion in a 2RU space.
Dual channel High Sensitivity SDI optical to electrical converter supporting data rates from 143Mb/s to 2.97Gb/s.
High sensitivity optical receivers provide an additional 10dB to your link budget over the standard optical receivers.
The -R2S high density split rear module can accommodate up to 2 FDR-6603-H cards, maximizing the number of conversion channels in a frame. In this configuration, the OG3-FR supports up to 40 independent channel solutions, providing ultra-high density conversion in a 2RU space.
Key Features
- Optical to Electrical for all SMPTE 424M, SMPTE 259M-C, SMPTE 292M standards
- Supports single-mode fiber
- Hot-swappable from front of frame with no external connect / reconnect required
- Optical input range 1270nm to 1610nm
- Optical input sensitivity -9dBm to -28dBm
- Optical input connection: LC / UPC
- Reclocked SDI outputs
- Reclocking on all outputs at 270Mb/s, 1.483Gb/s, 1.485Gb/s, 2.967Gb/s, 2.970Gb/s
- Alarming for signal presence and input sensitivity
- 5-year transferable warranty
- Power: 5.5 watts
Product Details
- Optical to Electrical for all SMPTE 424M, SMPTE 259M-C, SMPTE 292M standards
- Supports single-mode fiber
- Hot-swappable from front of frame with no external connect / reconnect required
- Optical input range 1270nm to 1610nm
- Optical input sensitivity -9dBm to -28dBm
- Optical input connection: LC / UPC
- Reclocked SDI outputs
- Reclocking on all outputs at 270Mb/s, 1.483Gb/s, 1.485Gb/s, 2.967Gb/s, 2.970Gb/s
- Alarming for signal presence and input sensitivity
- Power: 5.5 watts
