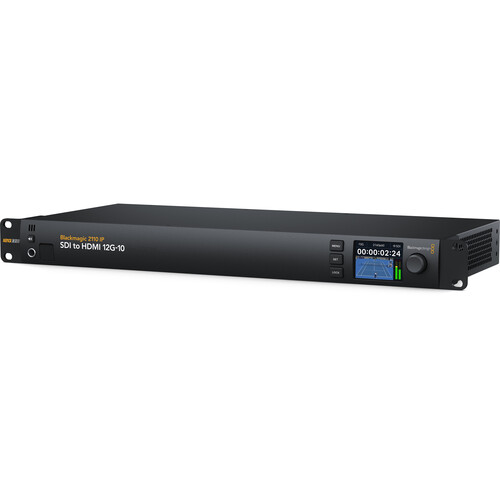

Blackmagic Design 2110 IP SDI to HDMI 12G-10 Converter

SDI Inputs

1

SDI Loop Outputs

1

SDI Rates

SD, 1.5G, 3G, 6G and 12G

HDMI 2.0 Video Outputs

1

SMPTE 2110 Input / Output

2 x 10G Ethernet

SMPTE ST 2110 IP Audio Inputs / Outputs

16 channels embedded input and output audio on ST‑2110 IP video via 10G Ethernet.

SDI Audio Inputs

16 channels embedded audio.

SDI Audio Outputs

16 channels embedded audio.

HDMI Audio Inputs

8 channels embedded audio.

HDMI Audio Outputs

8 channels embedded audio.

Analog Audio Outputs

10 channels of professional balanced analog audio with 3‑pin XLR connectors.

1 x 6.35 mm headphone jack.

Webcam Outputs

1 x USB‑C up to 1080p60

Ethernet

Ethernet supports 10/100/1000/10G BASE‑T for SMPTE 2110 IP video in and out,

Computer Interface

USB‑C for webcam out, updates and configuration

Local Audio Monitoring

Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.

SMPTE 2110-20 (Uncompressed Video)

IGMP v3

SMPTE 2110-21 (Traffic Shaping)

Sender: Narrow

Receiver: Narrow, Wide Synchronous, Asynchronous

SMPTE 2110-30 (PCM)

Audio Conformance level: Level C

SMPTE 2110-40 (Ancillary Data)

Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M‑2,

Codec

Blackmagic IP10 codec used when converting 2160p59.94 and 2160p60 to 10G 2110 IP video.

Precision Time Protocol

IEEE 1588-2008 (PTP v2)

ST 2059-1

ST 2059-2

NMOS IS-04 Discovery and Registration

v1.3.2

Peer-to-peer via mDNS/DNS‑SD

NMOS IS-05 Connection Management

v1.1.2

NMOS BCP-002-01

Natural Grouping

NMOS BCP-004-01

Receiver capabilities

Built in Control Panel

Built in control panel including 4 buttons, spin knob control and 2.2 inch color display.

External Control

RJ-45 10Gb/s Ethernet and USB‑C.

Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings.

Power Supply

1 x Internal 100 - 240V AC 50/60Hz.

Power Supply

1 x IEC C14 socket for AC power.

1 x 4‑pin XLR for +12V DC input for external power supply or battery use.

Power Usage

TBC

Operating Temperature

0° C to 40° C (32° - 104°F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non‑condensing
