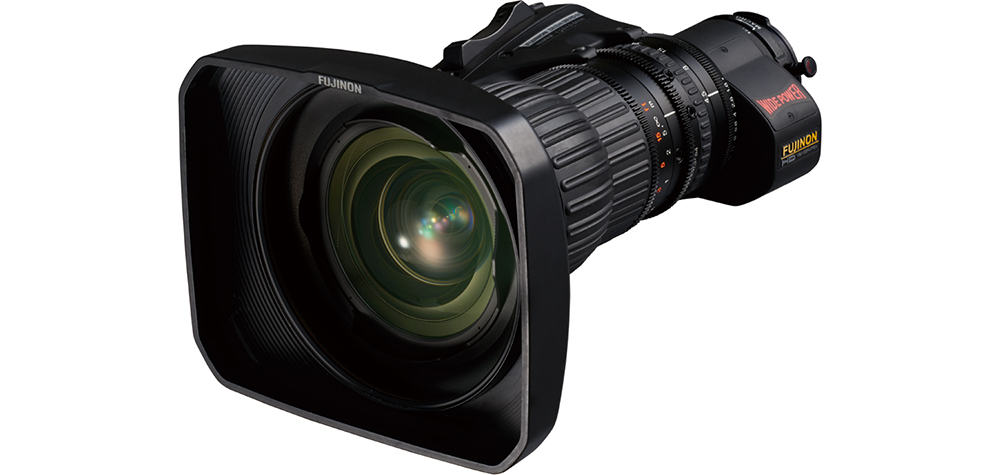

Fujinon ZA12x4.5BERD HDTV Lens
Affortable wide angle ENG style lens with digital servo grip. Focal length is covering from 4.5 to 54mm (9 to 108mm with 2x extender) to cover on-site usability in a versatile range of production for news, documentaries and live sport feeds.
The latest optical technorgy is contributed to improved control over chromatic aberrations and image distortion on the screen.
Fujinon ZA12X4.5BERD Lens features
- 4.5mm super wide angle of HD Zoom Lens
- Outstanding HD High Optical Performance
- Equiped New Ergonomical Digital Grip
- 16bit encoders device for virtual system
- Zoom Servo and Focus Servo
Model Name |
ZA12x4.5BERM / BERD | |
Focal length |
1x |
4.5-54mm |
2x |
9-108mm | |
Zoom ratio |
12x | |
Extender |
2x | |
Maximum relative aperture (F-no.) |
1 : 1.8 (4.5-41mm) / 1 : 2.4 (54mm) | |
Minimum object distance (M.O.D.) from front lens |
0.3m | |
Object dimensions at M.O.D. |
1x |
4.5mm 757 x 425mm |
2x |
9mm 373 x 210mm | |
Angular field of view |
1x |
4.5mm 93°38' x 61°50' |
2x |
9mm 56°06 x 33°20' | |
Filter thread |
M127 x 0.75 (Filter attaches to the lens hood.) | |
Size (φ x Length) |
φ95 x 237.5mm | |
Mass (without lens hood) |
2.0kg (RM) / 2.07kg (RD) |
