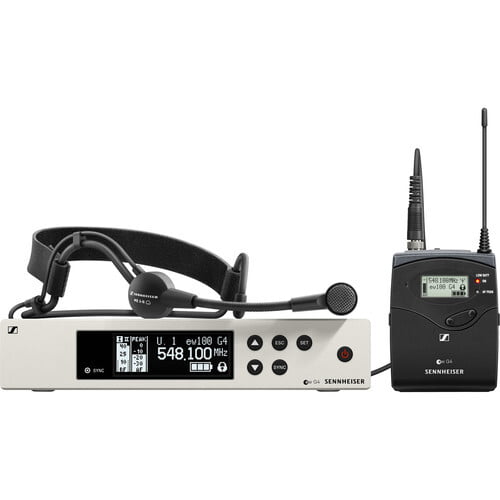

Sennheiser EW 100 G4-ME3-G

EM 100 G4

Frequency range

G: 566 - 608 MHz

Dimensions

Approx. 190 x 212 x 43 mm

Compander

Sennheiser HDX

THD, total harmonic distortion

≤ 0.9 %

Weight

Approx. 980 g

Audio output

6.3 mm jack socket (unbalanced): +12 dBu

XLR socket (balanced): +18 dBu

Signal-to-noise ratio

≥ 110 dBA

Switching bandwidth

up to 42 MHz

Peak deviation

±48 kHz

Nominal deviation

±24 kHz

Modulation

Wideband FM

Power supply

12 V DC

Antenna connector

2 BNC sockets

Current consumption

300 mA

Adjacent channel rejection

Typically ≥ 65 dB

Intermodulation attenuation

Typically ≥ 65 dB

Receiving frequency

Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

RF sensitivity

< 2.5 μV for 52 dBA eff S/N

Squelch

low: 5 dBµV middle: 15 dBµV high: 25 dBμV

Equalizer

Preset 1: Flat

Preset 2: Low Cut (-3 dB at 180 Hz)

Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

Preset 4: High Boost (+6 dB at 10 kHz)

Temperature Range

-10 °C to +55 °C

Receiver Principle

True diversity

Blocking

≥ 70 dB

SK 100 G4

Dimensions

Approx. 82 x 64 x 24 mm

Compander

Sennheiser HDX

THD, total harmonic distortion

≤ 0.9 %

Weight

(incl. batteries) approx. 160 g

Signal-to-noise ratio

≥ 110 dBA

RF output power

Max. 30 mW

Switching bandwidth

up to 42 MHz

Peak deviation

±48 kHz

Nominal deviation

±24 kHz

Operating time

Typically 8 h

Modulation

Wideband FM

Power supply

2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption

at nominal voltage: typ. 180 mA

with transmitter switched off: ≤ 25 µA

Input impedance

40 kΩ, unbalanced / 1 MΩ

Max. Input voltage

3 Veff

Powering

3 V battery / 2.4 V rechargeable battery

Transmission frequency

Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

AF frequency response

Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz

Temperature Range

-10 °C to +55 °C

Frequency stability

≤ ±15 ppm

ME 3

Connector

3.5 mm jack

Sound pressure level (SPL)

150 dB SPL

Cable length

approx. 1.60 m

Transducer principle

pre-polarized condensor microphone

Pick-up pattern

cardioid

Sensitivity

1.6 mV/Pa

Temperature Range

-10 °C to +55 °C
