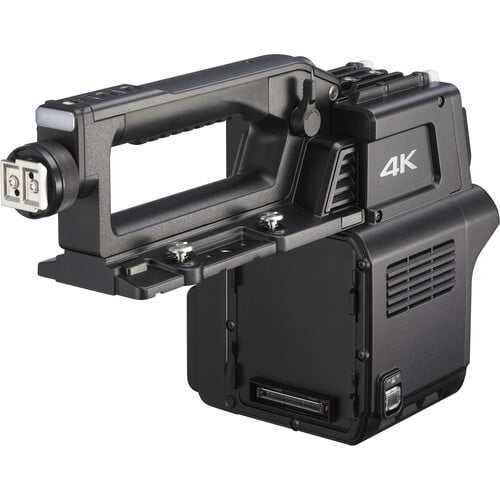

Sony CA4000 4K Fiber Transmission Camera Adaptor

Connectors

1 x Optoelectrical, BPU
1 x 12-pin, auxiliary
1 x 20-pin round type, VF-A
1 x 26-pin rectangular type, VF-B
1 x 3-pin XLR, audio input
1 x 5-pin XLR female, intercom
1 x 4-pin XLR, DC input
1 x 4-pin, DC output
1 x BNC, SDI-MONI
1 x BNC, Prompter1
1 x BNC, Prompter2/monitor
1 x 6-pin, RET CTRL
1 x 8-pin, REMOTE
1 x 10-pin, TRACKER
1 x 4-pin USB 2.0 type A, USB

Audio Input

Microphone: -60 dBu, balanced
Line: 0 dBu, balanced

DC Input

10.5 V to 17 VDC

DC Output

10.5 V to 17 VDC, 0.5 A

Prompter Input

1 V p-p, 75 ohms

Power Requirements

240 VAC, 1.7 A (max) 180 VDC, 1.0 A (max) 13 VDC, 10.2 A (max)

Operating Temperature

32 to 104°F (0 to 40°C)

Storage Temperature

-4 to 140°F (-20 to 60°C)

Dimensions

5.78 x 8.75 x 13.78" (14.7 x 22.1 x 35.0 cm)

Weight

Approx 5.5 lb (2.5 kg)
