The PTR-10 MARK II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, and compatible with DVIP over Ethernet and other integration solutions such as Crestron.
RMC-180 RMC-300A VISCA Protocol Controller IP Control IR remote
Panning / Tilting Range
Pan: 340° Tilt: ±45°
Panning / Tilting Speed
Pan: 0.2~15° /Sec Tilt: 0.1~10° /Sec
Preset
Pan/Tilt position 50
Control Distance
Sony VISCA DVIP
Control Protocal
Sony VISCA DVIP
Control Input
RS-422 DVIP
Maximum Load
4 KG Max
Control Output
RS-232 RS-422 BX-Lens LanC
Power Requirement
DC 12V~ 18V, 3A (Without Camera) DC 12V~ 18V, 5A (With Camera)

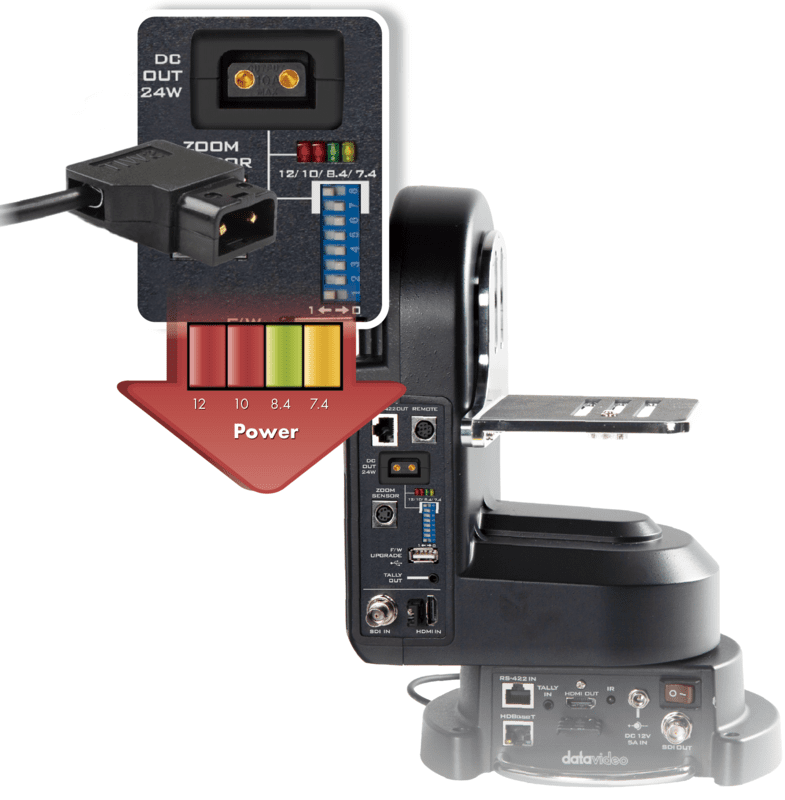

Power Supply
DC 12/10/8.4/7.4V, 24W Max
Operating Temp. Range
0~40 C°
Operating Humidity Range
10~80%
Storage Temp. Range
-10~60C°
Storage Humidity Range
5~80%
Weight
5.3KG
Dimension (LxWxH)
230 x 190 x 300 mm
What's in the Box
PTR-10 Mark II Main Unit x 1 DC 12V power adaptor x 1 AC cord x 1 IR remote control x 1 DC with lock to D-Tap cable x 1 HDMI cable x 1 SDI cable x 1 Remote cable (2.5mm phone-jack to mini-din 8pin) x 1 1/4" screw (14mm) x 2 1/4" screw (10mm) x 1 1/4" to 3/8" screw adaptor x 1 PTR-10 Mark II Thank You Card x 1
