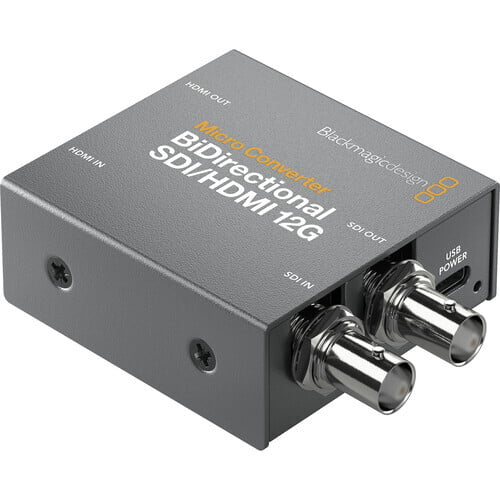

Blackmagic Design Micro Converter BiDirect SDI/HDMI 12G PSU
The new Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment.
Specification
Input
Video Input Connectors | 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female |
Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) |
Audio Input Connectors | None |
Embedded Audio Input | HDMI |
Output
Video Output Connectors | 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female |
Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) |
Audio Output Connectors | None |
Embedded Audio Output | HDMI |
Standards
Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
HDCP Support | Version 2.2 |
HDR Compatibility | Not Specified by Manufacturer |
Connectivity
Other I/O | 1 x USB Type-C Firmware Input (Shared Power) |
Expansion Slots | None |
Hardware
Tally Light | Yes |
OS Compatibility | macOS 10.15.15 or Later |
Power
Power Connector | 1 x USB Type-C (4.4 to 5.2 VDC) Input |
Power Consumption | Device: 5 W |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% |
General
Dimensions | 3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm |
Weight | 6.13 oz / 174 g |
