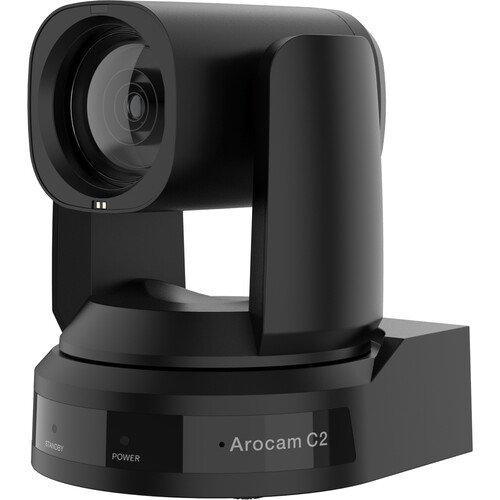

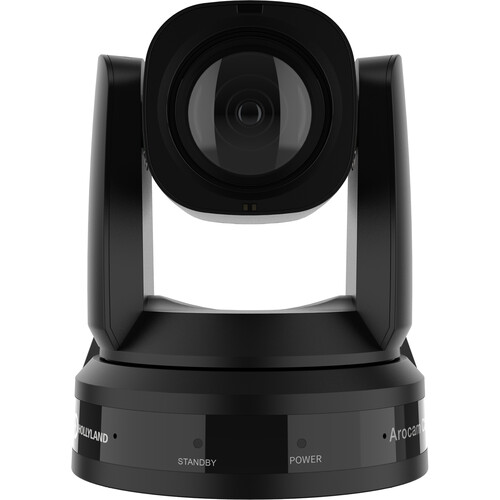

Hollyland Arocam C2 HD Vertical Livestream Camera
$699.00
Tags:
The Hollyland Arocam C2 is a compact and powerful PTZ camera, specially designed for live streaming, live commerce, live shopping, and video meeting.
Product Details
SPECIFICATION
| Output Format | 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50 |
| Sensor | 1/2.8 inch, CMOS, Max Effective Pixel: 2.07M |
| Scanning Mode | Progressive |
| Lens | 12x, f = 3.5mm–42.3mm, F1.8–F2.8 |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s–1/10000s |
| White Balance Mode | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Backlight Compensation | Supported |
| Digital Noise Reduction | 2D & 3D Digital Noise Reduction |
| SNR | ≥55dB |
| Horizontal Angle of View | 6.9°–72.5° |
| Vertical Angle of View | 3.9°–44.8° |
| Horizontal Rotation Range | 340° |
| Vertical Rotation Range | 120° |
| Panning Speed Range | 2.7°–35.7°/s |
| Tilting Speed Range | 2.7°–31.5°/s |
| H & V Flip | Supported |
| Image Freeze | Supported |
| Number of Presets | 255 |
| Preset Accuracy | 0.1° |
| USB Features | |
|---|---|
| OS | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
| Color System/Compression | 1/2.8 inch, CMOS, Max Effective Pixel: 2.07M |
| Scanning Mode | YUY2/MJPEG |
| Output Video Format | ·YUY2: 1080P@30fps (max.) ·MJPEG: 1080P@30fps (max.) |
| USB Audio Communication Protocol | UAC1.0 |
| USB Video Communication Protocol | UVC 1.1 |
| UVC PTZ | Supported |
| Network Features | |
|---|---|
| Video Compression | H.264/ MJPEG |
| Video Stream | First/Second Stream |
| First Stream Resolution | 1920x1080, 1280x720 |
| Second Stream Resolution | 1280x720, 640x360 |
| Bit Rate for First Stream | 32Kbps–20480Kbps |
| Bit Rate for Second Stream | 32Kbps–6144Kbps |
| Bit Rate Control | CBR, VBR |
| Frame Rate | 50Hz: 1fps–50fps, 60Hz: 1fps–60fps |
| Audio Compression | AAC |
| AAC | 96Kbps, 128Kbps, 256Kbps |
| Network Protocols | TCP/IP, HTTP, RTSP, RTMP(S), ONVIF, DHCP, Multicast, etc. |
| Input/Out Interfaces | |
|---|---|
| Line Input Interface | 1 x Line Input: 3.5mm Line Input Interface |
| Communication Interface | 1 x RS232 IN: 8pin Min DIN, Max Distance: 30m,Protocol: VISCA/Pelco-D/Pelco-P |
| Network Interface | 1 x NET: 10M/100M Adaptive Ethernet Port |
| USB Interface | 1 x USB 3.0: Type C |
| HDMI Interface | 1 x HDMI: Version 1.4b |
| Power Jack | DC (DC 12V)/USB Type-C (5V) |
| Power, Temperature, Measures, and Weight | |
|---|---|
| Input Voltage | DC 12V/USB 5V |
| Input Current | 12V 1.0A (max.)/5V 1.5A (max.) |
| Operating Temperature | –10℃ to 40℃ |
| Storage Temperature | –40℃ to 60℃ |
| Power Consumption | 12W (max.) |
| Dimension | 142.2x151.9x175.8mm (5.6"x6"x6.9") |
| Net Weight | 1.5kg (52.9oz) |
