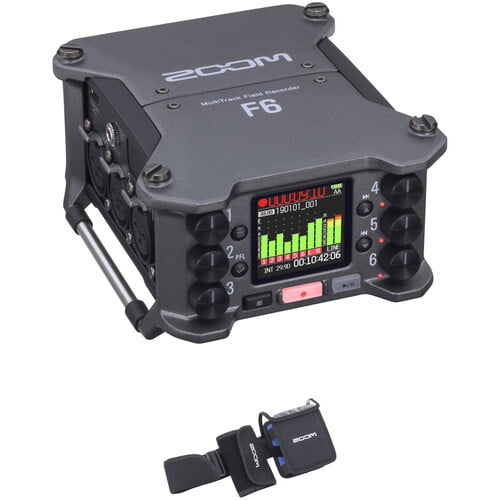

Zoom F6 6-Input / 14-Track Multitrack Field Recorder Kit with Wearable Protective Case

Number of Tracks

WAV:
8 (6 s + Stereo Mix)

Max Sample Rate/Resolution

192 kHz / 32-Bit

Microphone

None

Built-In Speaker

None

Display

Color LCD (Backlit)

Memory Card Support

SD, SDHC, SDXC (Up to 512 GB)

Internal Storage

None

Audio File Formats

BWF, MP3, WAV, iXML

Sample Rates

WAV:
44.1 / 47.952 / 48 / 48.048 / 88.2 / 96 / 192 kHz

Bit Depth

16 / 24 / 32-Bit

Bit Rates

128 to 320 kb/s

Signal Processing

Limiter

Timecode

Yes

Frame Rates Supported

23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF

Clock Accuracy

±0.2 ppm (Timecode)

Recording Time

WAV 48 kHz/24-Bit:
57.69 Mins per GB (Stereo)
WAV 192 kHz/24-Bit:
14.41 Mins per GB (Stereo)

Analog I/O

6 x XLR 3-Pin Female Balanced Line/Mic (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output

Digital I/O

1 x 1/8" / 3.5 mm TRS Timecode In/Out

Phantom Power

+24 / 48 V

Phantom Power Current

≤10 mA per Channel

Host Connection

1 x USB Type-C (I/O, USB 2.0)

Gain Range

Mic s:
+12 to +75 dB
Line s:
+8 dB to +55 dB

Max Level

Mic s:
+4 dBu
Line s:
+24 dBu

Max Output Level

Line Outputs:
+10 dBV

Headphone Output Power

100 mW per Channel into 32 Ohms

Dynamic Range

Line Outputs:
95 dB
Headphone Outputs:
108 dB

Impedance

Mic s:
≥3 kOhms
Line s:
≥5 kOhms
Line Outputs:
≤100 Ohms
Headphone Outputs:
≤15 Ohms
Timecode :
4.6 kOhms
Timecode Output:
≤50 Ohms

EIN

≤-127 dBu (A-Weighted)

Power Options

Batteries or AC/DC Power Adapter

Battery Type

4 x AA (Included)
1 x L Series (Not Included)

Approximate Battery Life

WAV 48 kHz/16-Bit:
7.5 Hours (Alkaline, 2 Channels, Backlit Display, Phantom Off, with Headphones)
10.5 Hours (NiMH, 2 Channels, Backlit Display, Phantom Off, with Headphones)
16.5 Hours (Lithium, 2 Channels, Backlit Display, Phantom Off, with Headphones)
WAV 48 kHz/24-Bit:
5 Hours (Alkaline, All Channels, Backlit Display, Phantom Off, with Headphones)
7 Hours (NiMH, All Channels, Backlit Display, Phantom Off, with Headphones)
10.5 Hours (Lithium, All Channels, Backlit Display, Phantom Off, with Headphones)
WAV 192 kHz/24-Bit:
0.5 Hours (Alkaline, All Channels, Backlit Display, Phantom On, with Headphones)
1.5 Hours (NiMH, All Channels, Backlit Display, Phantom On, with Headphones)
3.5 Hours (Lithium, All Channels, Backlit Display, Phantom On, with Headphones)

AC/DC Power Adapter

5 VDC (Not Included)

Dimensions

3.9 x 2.5 x 4.7" / 100 x 62.9 x 119.8 mm

Weight

1.2 lb / 530 g

Package Weight

2.7 lb

Box Dimensions (LxWxH)

10 x 7.5 x 5"

Compatibility

Zoom F6

Interior Dimensions

7.5 x 6.3 x 1.6" / 19 x 16 x 4.1 cm

Exterior Dimensions

7.7 x 6.5 x 3.2" / 19.6 x 16.5 x 8.1 cm

Weight

0.98 lb / 0.44 kg

Package Weight

0.985 lb

Box Dimensions (LxWxH)

9.45 x 8.65 x 4.7"
