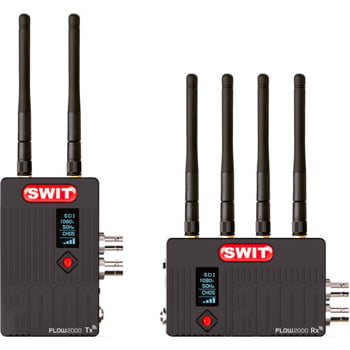

SWIT 2000' HDMI Wireless Video Transmission System With Embeded Audio

Antenna Ports

Transmitter: 2 x RP-SMA
Receiver: 4 x RP-SMA

Video

Transmitter: 1 x BNC (3G-SDI/HD-SDI/SD-SDI) Input
Transmitter: 1 x HDMI Type A (HDMI 1.3) Input
Transmitter: 1 x BNC (3G-SDI/HD-SDI/SD-SDI) Loop Output
Receiver: 2 x BNC (3G-SDI/HD-SDI/SD-SDI) Output
Receiver: 1 x HDMI Type A (HDMI 1.3) Output

HDCP Support

Not Specified by Manufacturer

Embedded Audio

HDMI/SDI: 2-Channel

Audio

None

Power

Transmitter: 1 x 5.5 mm Barrel (34 VDC) Input
Receiver: 1 x 5.5 mm Barrel (34 VDC) Input

Other I/O

Transmitter: 1 x Micro-USB

Encryption

128-Bit AES

Wireless Range

2000' / 609.6 m

# of Channels

7

Frequency Range

DFS Frequencies
5.1 to 5.9 GHz

Wi-Fi

None

Video Format

SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50

Audio Format

Not Specified by Manufacturer

Wireless Video Compression

Uncompressed

Timecode Support

Yes

DC Input Power

7 to 34 VDC

Battery Type

Transmitter: 1 x L-Series
Receiver: 1 x L-Series

Power Consumption

Transmitter: 8 W
Receiver: 8 W

Mounting

1 x 1/4"-20 Female

IP Rating

None

Operating Temperature

32 to 104°F / 0 to 40°C

Dimensions

Transmitter: 4.2 x 2.6 x 1" / 106.5 x 66 x 24.7 mm, Excluding Antenna, Battery Plate
Receiver: 4.2 x 2.6 x 1" / 106.5 x 66 x 24.7 mm, Excluding Antenna, Battery Plate

Weight

Transmitter: 8.3 oz / 236 g, Excluding Antenna
Receiver: 8.6 oz / 245 g, Excluding Antenna

Package Weight

Box Dimensions (LxWxH)

14.7 x 11.7 x 4.5"
