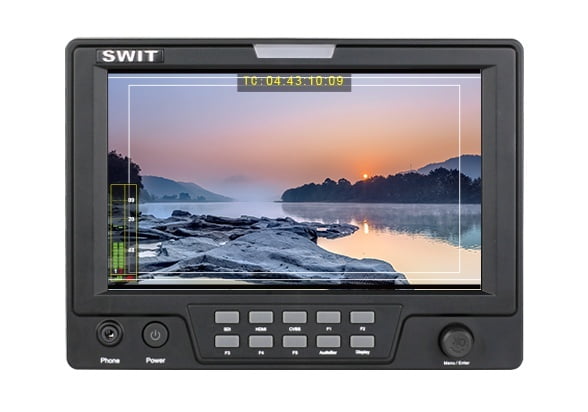

Swit S-1071H+ (Simple Pacakge) 7inch Broadcast LCD Monitor

Size

• 7 inches

Display area

• 153.6×90mm

Resolution

• 1024×600

Aspect ratio

• 16:9 (4:3 adjustable)

Brightness

• 400nit

Contrast

• 900:1

Colour

• 16.77 million colors

Viewing angle

• Horizontal: 160°; Vertical: 160°

Input

BNC ×1

• 2K/3G/HD/SD-SDI input

BNC ×1

• Composite input

HDMI ×1

• HDMI input

RCA ×2

• Analog audio input L ×1 R×1

Output

BNC ×1

• 2K/3G/HD/SD-SDI loop output

BNC ×1

• Composite loop output

HDMI ×1

• HDMI loop output

3.5mm ×1

• SDI, HDMI, Analog audio output

Video Format

SDI

• 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 2048×1080i (60 / 59.94 / 50)
• 1080p (60 / 59.94 / 50)
• 1080i (60 / 59.94 / 50)
• 1080p (30 / 29.97 / 25 / 24 / 23.98)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• 720p (60 / 59.94 / 50)
• 480i (59.94)
• 576i (50)

HDMI

• 480i/ 576i / 480p / 576p
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)

CVBS

• PAL / NTSC

General

Input voltage

• DC / battery 6.5V-17V

Power consumption

• ≤10W

Working temperature

• 0°C～+40°C

Working humidity

• 10%～90%

Storage temperature

• -15°C～+60°C

Storage humidity

• 10%～90%

Dimensions

• 192×139×47mm

Net weight (main body)

• 550g
