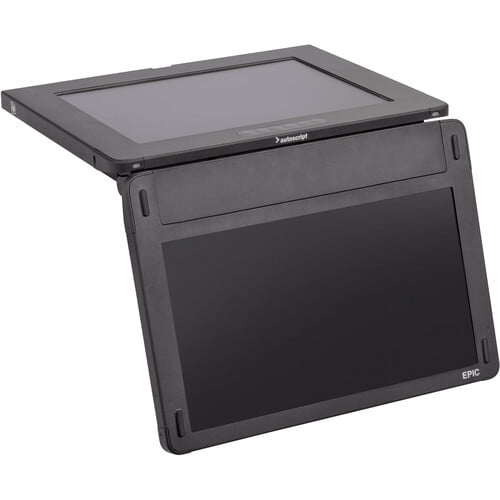

Autoscript EPIC-IP 17" prompt monitor and integrated 17" talent monitor only
The Autoscript Epic-IP 17" Prompt Monitor and Integrated 17" Talent Monitor is a combination of a 17" prompting monitor that interfaces directly with WinPlus-IP software using its LAN connector, and a 17" talent confidence monitor.
Specifications
Prompt monitor size
17" (43.18cm)
Integrated talent monitor size
17.3" (43.94cm)
Prompt monitor aspect ratio
4:3
Prompt monitor brightness
1500 nits
Prompt monitor resolution
1280 x 1024 SXGA
Prompt monitor contrast ratio
1000:1
Talent monitor aspect ratio
16:9
Talent monitor brightness
400 nits
Talent monitor resolution
1920 x 1080
Script and feedback inputs
LAN, 2x HD-SDI, 2x CVBS
Tally input
Opto sensor
Timecode Inputs
LTC, NTP (VITC, D-VITC optional)
Power consumption
48W
Power input
4-pin XLR, 12-16.8VDC
Outputs
Repeat Tally Output inc. 12V DC out
Viewing Angle (H/V)
170 Degrees/160 Degrees
Dimensions
Prompt monitor: 17.3 x 14.2 x 1.6" (43.94 x 36.07 x 4.06cm)
Weight
Integrated monitor: 6.1kg (13.45 lbs
