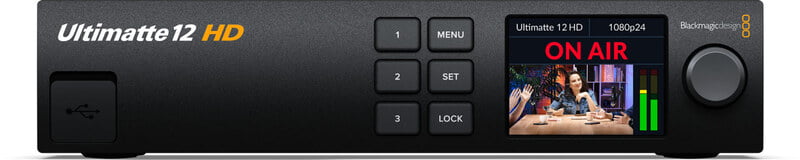

Blackmagic Design Ultimatte 12 HD
SPECIFICATION
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
8K Video Standards
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p50, 4320p59.94, 4320p60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2081-12, SMPTE 2082-11 and SMPTE 2082-12.
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2081-12, SMPTE 2082-11 and SMPTE 2082-12.
Video Sampling
4:2:2
4:2:2
Color Precision
10-bit
10-bit
Color Space
REC 601, REC 709, REC 2020.
REC 601, REC 709, REC 2020.
Multiple Rate Support
Auto detection of SD, HD, 6G‑SDI, 12G-SDI, 2SI Quad Link 12G‑SDI, 2SI Dual Link 12G‑SDI and 2SI Quad Link 6G‑SDI.
Auto detection of SD, HD, 6G‑SDI, 12G-SDI, 2SI Quad Link 12G‑SDI, 2SI Dual Link 12G‑SDI and 2SI Quad Link 6G‑SDI.
Composite Sources
Foreground
4 x 12G-SDI In with Loop Out
4 x 12G-SDI In with Loop Out
Background
4 x 12G-SDI In with Loop Out
Still from Media Pool
4 x 12G-SDI In with Loop Out
Still from Media Pool
Background Matte
4 x 12G-SDI In with Loop Out
Internal Window
Still from Media Pool
4 x 12G-SDI In with Loop Out
Internal Window
Still from Media Pool
Garbage Matte
4 x 12G-SDI In
Internal Window
Still from Media Pool
4 x 12G-SDI In
Internal Window
Still from Media Pool
Holdout Matte
4 x 12G-SDI In
Internal Window
Still from Media Pool
4 x 12G-SDI In
Internal Window
Still from Media Pool
Layer
4 x 12G-SDI In with Loop Out
Still from Media Pool
4 x 12G-SDI In with Loop Out
Still from Media Pool
Layer Matte
4 x 12G-SDI In with Loop Out
Internal Window
Still from Media Pool
4 x 12G-SDI In with Loop Out
Internal Window
Still from Media Pool
Composite Outputs
Fill
4 x 12G-SDI
4 x 12G-SDI
Matte
4 x 12G-SDI
4 x 12G-SDI
Program
4 x 12G-SDI
4 x 12G-SDI
Talent
4 x 12G-SDI
4 x 12G-SDI
Monitor
Monitor In
4 x 12G-SDI
for monitor cascade
4 x 12G-SDI
for monitor cascade
Monitor Out
4 x 12G-SDI
For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.
4 x 12G-SDI
For monitoring Program, Foreground Input, Background Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Background Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Background Matte, Screen Correction.
Media Pool
Background Still Image Formats
TGA, TIFF, BMP, PNG, JPG.
TGA, TIFF, BMP, PNG, JPG.
Background with Alpha Still Image Formats
TGA, TIFF, BMP.
TGA, TIFF, BMP.
Layer Image Still Image Formats
TGA, TIFF, BMP, PNG, JPG.
TGA, TIFF, BMP, PNG, JPG.
Layer with Alpha Still Image Formats
TGA, TIFF, BMP.
TGA, TIFF, BMP.
Garbage Matte Still Image Formats
TIFF, BMP, PNG, JPG.
TIFF, BMP, PNG, JPG.
Holdout Matte Still Image Formats
TIFF, BMP, PNG, JPG.
TIFF, BMP, PNG, JPG.
Media Pool Memory
6GB non-volatile internal storage.
6GB non-volatile internal storage.
