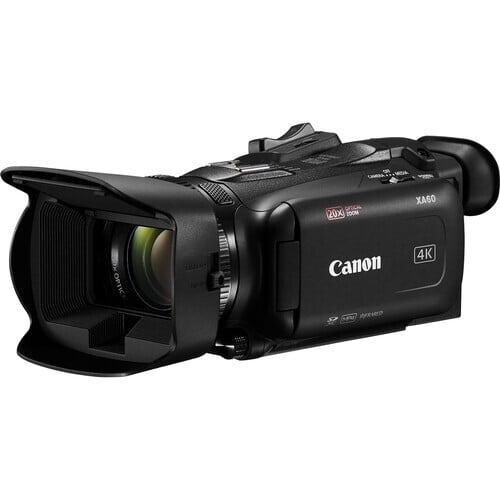

Canon XA60B

Canon XA60B

$1,728.57
Tags:
Shoot high quality 4K UHD video with the compact XA60B. As well as outstanding Over Sampled HD processing, advanced autofocus, a Canon 20x optical zoom lens and HD livestreaming in UVC 1 via USB-C over a computer, capture footage in either XF-AVC or MP4 formats.
Quantity
Add to Cart
Product Details
  • SPECIFICATION
    • Sensor
      1/2.3-type CMOS
    • Filter
      RGB Primary Colour Filter
    • Total Pixels
      Approx. 21.14MP
    • Effective Pixels per Sensor
      Approx. 8.29 MP (3840 x 2160)
    • Subject Illumination Range
      Approx. 0.3 lx to 100,000 lx
    • Minimum Illumination (PAL)
      P (Program AE) Mode: Approx. 4.2 lx (shutter speed 1/25 sec with auto slow shutter On)
      Low Light Mode: Approx. 0.3 lx (shutter speed 1/2 sec.)

    Image Processor

    • Type
      DIGIC DV 6
    • Colour Sampling
      YCC 4:2:0 8bit

    Lens

    • Zoom Ratio
      20x Optical
    • Focal Length (35mm Equivalent)
      Approx. 29.3 - 601mm Standard IS/IS Off
    • Minimum Focus Distance
      1 cm at wide end, 60 cm across entire zooming range
    • Max. Aperture
      f/1.8 - 2.8 (AV Priority and Manual Modes)
    • Aperture Blades
      8 blades
    • Filter Diameter
      58mm
    • Image Stabilization System
      Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered IS, Off
    • ND Filter
      Built-in gradation filter (Auto or Off)
    • Zoom Control
      Zoom rockers on body and handle;
      Selectable manual zoom/focus ring on lens;
      Selectable High Speed and Soft Zoom modes available.
    • Zoom Speed
      Variable (body rocker only) or Constant speed (body and handle rocker; Fast/Normal/Slow, 16 speed level settings in each)
    • Focus Control
      MANUAL: Lens ring and touchscreen point selection (Magnify and Peaking assist functions), Focus Preset.
      AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. (Instant AF, Medium AF, Normal AF)
    • Focus System
      Hybrid AF (High Speed/Medium speed). Uses combination of TTL-video signal detection system and external phase difference metering system.
      Normal AF. TTL, Contrast based AF
    • Iris Control
      Touchscreen, Auto
    • Digital Zoom/Teleconverter
      20x digital zoom (400x with optical zoom) and 40x digital zoom (800x with optical zoom) are available. Digital zoom not available in AUTO mode. 2x Digital Teleconverter

    Recording

    • Video Storage Media
      SD/SDHC/SDXC card (2 card slots)
    • Recording Time
      150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins
    • Recording File System
      FAT32/exFAT
    • Internal Recording Format (PAL)
      XF-AVC:
      3840 x 2160 / 25.00P (160 Mbps)
      1920 x 1080 / 50.00P, 50.00i, 25.00P (45 Mbps)
      MP4:
      3840 x 2160 / 25.00P(150 Mbps)
      1920 x 1080 / 50.00P, 25.00P (35, 17 Mbps)
    • External Recording Output
      HDMI output (When Shooting):
      UHD recording mode:
      1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
      Full HD recording mode:
      1920 x 1080  50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit
    • Slow/Fast Motion (PAL)
      3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200
      1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200
      1920 x 1080 / 25.00P: x0.5
    • Pre-Record Function
      Yes. 3 seconds
    • Still Photos
      JPEG up to 3840x2160
      (Still image resolution is dependent on the video resolution)
    • Photo Storage Media
      SD Card

    System

    • Display Type
      Capacitive LCD touch panel
    • Size
      3.5-inch (8.8 cm) on the diagonal, Approx. 2,760,000 dots (1280 x RGB x 720)
    • Wave Form Monitor
      No
    • Focus Assist
      Peaking / Magnify
    • Peaking
      Selectable Peaking Colour: Red / Blue / Yellow
    • Zebra
      70% or 100% reference level
    • Markers
      Grid (white/grey), Level (white/grey), 4:3 (white/grey)

    EVF

    • Size
      0.36-inch (0.92 cm on the diagonal), Approx. 1,770,000 dots (1024 x RGB x 576)
    • Correction Lens
      +2.0 to -5.5 dioptre

    Inputs / Outputs

    • Audio Input
      3.5mm microphone input jack (Supply Voltage 2.4V DC)
      Built-in Mic
      XLR 3-Pin jack x2 with: With HDU-4 Handle Unit (HDU-4 Handle unit sold separately)
    • Headphone Output
      3.5mm stereo mini jack
    • HDMI Output
      HDMITM mini connector
    • USB
      Type-C
      Hi-Speed USB (USB 2.0) equivalent. Point-to-point class and UVC supported.
    • SDI Output
      No
    • Time Code
      Rec Run / Free Run
    • Genlock
      No
    • LAN
      No
    • AV Terminal
      No
    • DC Input
      USB-C
    • Remote Control Terminal
      2.5mm mini jack

    Miscellaneous

    • Tally Lamp
      Yes, in detachable Handle Unit
    • Colour Bars (PAL)
      Yes. SMPTE, ARIB or EBU, with 1KHz Tone
    • Accessory Shoe
      Yes (cold shoe)
    • Assignable Buttons
      5 assignable Buttons
    • Custom Dial
      Iris/Shutter/Gain, AGC Limit, Exposure Compensation, Off

    Exposure

    • Exposure Metering
      Center-weighted average metering
      AUTO, P, Av, Tv, Portrait, Sports, Low Light and IR modes
      Segment evaluative metering
      Night Scene, Snow, Beach, Sunset, Spotlight modes
      No metering in Fireworks mode: Exposure constant
    • Exposure Compensation
      Highlight AE, Normal, Exposure lock, Auto backlight compensation.
    • Exposure Lock
      Yes.
    • Auto ISO / Auto Gain Control Setting
      Auto / Manual
    • Auto Gain Control Limit
      0 - 23dB (1dB increments)

    Shutter Speed

    • Control Modes
      Auto, P, Tv, Manual
    • Shutter Speed (PAL)
      1/6 - 1/2000 sec
      (1/2 - 1/500 sec in Low Light mode)
    • Slow Shutter (SLS)
      50.00P:
      Auto slow shutter On: 1/25 to 1/500 sec.
      Auto slow shutter Off: 1/50 to 1/500 sec.

      25.00P:
      Auto slow shutter On: 1/12.5* to 1/500 sec. (*Display is 1/12)
      Auto slow shutter Off: 1/25 to 1/500 sec.
    • Clear Scan (PAL)
      No

    Streaming, Wi-Fi, & GPS Specifications

    • Wi-Fi
      No
    • GPS Information (Optional Accessory)
      Location (Latitude/Longitude/Altitude), Coordinated Universal Time (UTC), Satellite reception.
      (requires the optional GPS Receiver GP-E2)

    White Balance

    • Auto
      Yes
    • Preset
      Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K)
    • Manual Setting
      Colour Temperature range: 2,000–15,000K
      Default value for Set 1 and Set 2: 5,600K

    Shooting Modes

    • Program AE
      AUTO mode
      M (Manual) mode
      P (program AE), Tv (shutter-priority AE), Av (aperture-priority AE), M (manual exposure), SCN (Portrait, Sports, Night Scene, Snow, Beach, Sunset, Low Light, Spotlight, Fireworks) IR mode
    • Custom Picture Menu
      C1: Normal (BT.709 Normal / BT.709)
      C2 to C6: USER02 to USER06
    • Look Settings
      Standard
      (Adjustment: Sharpness, Contrast, Colour Depth)
    • Colour Matrix Settings
      Neutral: accurate colour reproduction
      Video: Higher contrast colour reproduction
    • Infrared Shooting Mode
      Yes (green or white)
    • Built-in IR Lamp
      Optional accessory HDU-4 Handle Unit required

    Audio

    • Recording Format
      MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)
    • Audio Control
      Manual/Auto
      Independent level control per channel (-∞ to +18 dB);
      Independent audio limiters (2 ch);
      Input mic trimming
    • Reference Tone
      1KHz, -12dB / -18dB / -20dB / Off
    • Microphone Attenuation
      On/Off (20dB)
    • Microphone Level Meter
      Yes

    Accessories

    • Supplied
      Lens hood with barrier, Battery Pack BP-820, USB Power Adapter PD-E1, AC Cable
    • Optionals
      Canon HDU-4 Handle Unit, Canon Battery Pack BP-820/BP-828, Canon Battery Charger CG-800E/CG-800, Canon HDMI cable HTC-100/HTC-100S, Canon Tele Converter TL-H58, Canon Wide Attachment WA-H58, Canon Shoulder Strap SS-600/SS-650, Wrist Strap WS-20, Canon PROTECT Filter 58mm, Canon ND4-L Filter 58mm, Canon ND8-L Filter 58mm, Canon GPS Receiver GP-E2, Canon Remote Controller RC-V100, Canon Battery Video Light VL-10Li/VL-10LiII, Canon Battery Pack BP-900 series (for VL-10Li/VL-10LiII), Canon Compact Power Adapter CA-910/920/930 (for charging BP-900 series), Canon Interface Cable IFC-300PCU/S / IFC-400PCU

    Power Source

    • Power Supply (Battery)
      Canon Battery Pack BP-820 (supplied), BP-828 (optional)
    • Power Consumption
      UHD:
      MP4, 150Mbps 25.00P : Approx. 4.5W
      XF-AVC,160Mbps 25.00P : Approx 4.5W
      Full HD:
      MP4, 35Mbps 50.00P : Approx. 4.6W
      XF-AVC, 45Mbps 50.00P : Approx. 4.6W
    • Recording Time
      UHD
      MP4: 150Mbps/25.00p: Max. 165 mins (BP-820), typical 95 mins /
      Max. 240 Mins, typical 140 mins ( Optional BP-828)
      XF-AVC: 160Mbps/25.00P: Max. 160 mins (BP-820), typical 95 mins.
      Max. 230 mins, typical 145 mins (Optional BP-828)

    Physical Specifications

    • Dimensions
      Approx. 109 x 84 x 182 mm
    • Weight (Body Only)
      Approx. 740g
    • Operating Temperature Range
      0ºC to +40ºC, 85% relative humidity
