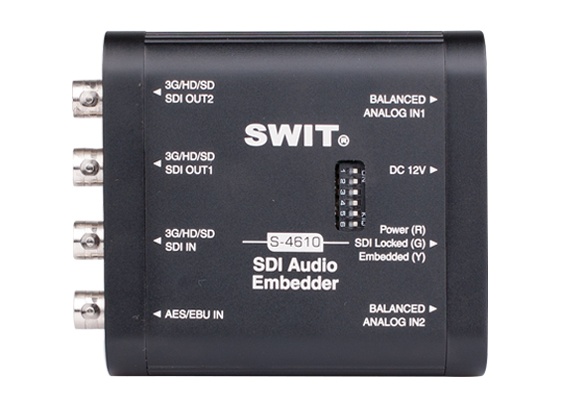

Swit S-4610 SDI Audio Embedder

Housing

Heavy-duty aluminum

Inputs

1 x BNC 3G/HD/SD-SDI port
1 x BNC AES/EBU digital audio port
2 x 6.35 mm plug analog audio port (balanced)
1 x DC socket, power

Outputs

2 x BNC 3G/HD/SD-SDI embedded port

Control

1 x 6-switch embed channel selection

Indicator

1 x LED, power
1 x LED, SDI
1 x LED, embedded

Video Formats

SDI: SMPTE-425M at 1080p: 60, 59.94, 50
SMPTE-274M at 1080i: 60, 59.94, 50, 1080p: 30, 29.97, 25, 24, 23.98
SMPTE-RP211 at 1080psf: 30, 29.97, 25, 24, 23.98
SMPTE-296M at 720p: 60, 59.94, 50
SMPTE-125M at 480i (59.94)
ITU-R BT.656 at 576i (50)

Audio Formats

Digital Audio: AES/EBU 5 V p-p at 48 KHz
Analog Audio: +24 dBu (max.), 20 Hz-20 KHz bandwidth

Power Consumption

Up to 3 W

Operating Voltage

6-18 VDC

Operating Temperature

32 to 122°F / 0 to 50°C

Operating Humidity

10 - 90%

Dimensions

3.9 x 3.3 x 1.1" / 9.8 x 8.4 x 2.9 cm

Weight

8.3 oz / 235 g

Package Weight

Box Dimensions (LxWxH)

7.9 x 4.8 x 3.6"
