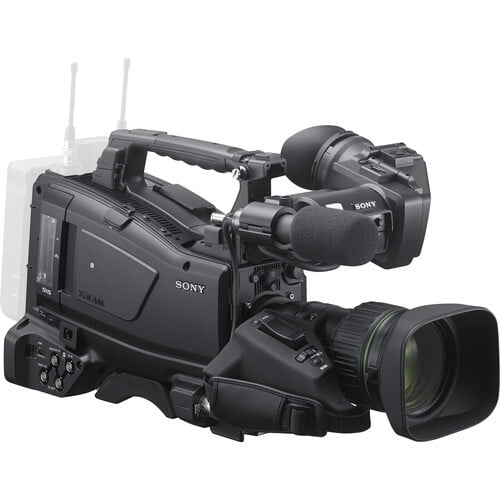

Sony PXW-X400KC 20xManual Focus Kit

Image Sensor

3-Chip 2/3" CMOS Sensor

Effective Sensor Resolution

1920 x 1080 (2.07 MP)

Horizontal Resolution (TV Lines)

1000 TV Lines or More

Gain

-3 to 42 dB

Signal-to-Noise Ratio

62 dB

Minimum Illumination

0.013 Lux

Focal Length

8.2 to 164mm

Optical Zoom Ratio

20x

Max Digital Zoom

4x

Maximum Aperture

f/1 to 9

Minimum Aperture

f/16

Minimum Focusing Distance

Entire Zoom Range: 35.4" / 90.0 cm
Macro: 0.4" / 1.0 cm

Filter Size

82 mm

Focus Control

Autofocus
Manual Focus

Shutter Speed

1/1/2 to 1/1/2000 sec

Built-In ND Filter

Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Recording Media

2 x SxS Card Slots
1 x SD Card Slot

Recording Modes

XAVC-I:
1920 x 1080p at 23.98/25/29.97 fps (89 to 112 Mb/s)
1280 x 720p at 50/59.94 fps (112 Mb/s)
XAVC-L:
1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s)
1280 x 720p at 50/59.94 fps (50 Mb/s)
MPEG-2 4:2:2:
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (50 Mb/s)
AVCHD:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s)

Variable Frame Rates

1080p: 1 to 60 fps
720p: 1 to 60 fps

Video Connectors

1 x HDMI Output
1 x BNC (Composite) Output
2 x BNC (3G-SDI) Output

Audio Connectors

2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 5-Pin XLR Input/Output
1 x 1/8" / 3.5 mm Stereo Headphone Output
1 x 5-Pin XLR Mic Level Input

Other I/O

1 x 12-Pin Lens Control
1 x BNC Timecode Output
1 x DE-15/DB-15 Wireless Receiver
1 x 8-Pin Hirose Control
1 x BNC Genlock Input
1 x BNC Timecode Input
2 x USB Type-A
1 x USB Type-B
1 x RJ45 LAN
1 x 50-Pin
1 x 20-Pin Viewfinder
1 x 26-Pin Viewfinder

Display Type

Articulating LCD

Size

3.5"

Resolution

960 x 540

EVF Display Type

LCD

Screen Size

3.5"

EVF Resolution

960 x 540

Power Connectors

1 x 4-Pin Hirose (11 to 17 VDC up to1.8 A) Output
1 x 2-Pin Light Output
1 x 4-Pin XLR (11 to 17 VDC) Input

Power Consumption

24 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions

6 x 11 x 13" / 15 x 27 x 33 cm

Weight

7 lb / 3.6 kg

Warranty Length

None

Package Weight

17 lb

Box Dimensions (LxWxH)

18 x 15.3 x 14.5"
