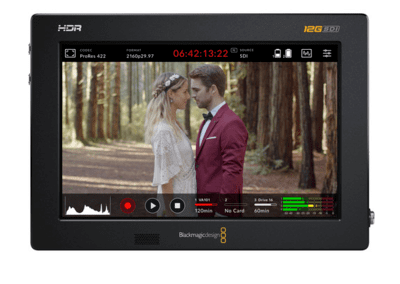

Blackmagic Design Video Assist 7" 12G-SDI/HDMI HDR Recording Monitor
Blackmagic Video Assist is so versatile it can be used for hundreds of tasks! Add it onto your camera rig to get a large screen viewfinder with modern record codecs, focus assist features and 3D LUTS
Specification
Display
Panel Type | TFT LCD |
Display Size | 7.0" / 17.8 cm |
Screen Resolution | 1920 x 1200 |
Aspect Ratio | 16:10 |
Touchscreen | Yes |
Maximum Brightness | 2500 cd/m2 |
Pixels Per Inch (ppi) | 323 ppi |
Image Controls | Histogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform |
· I/O
Video | 1 x HDMI Type A (HDMI 2.0a) Input |
HDCP Support | No |
Embedded Audio | HDMI: 8-Channel |
Audio | 1 x 3.5 mm Headphone Output |
Built-In Speaker | 1 |
Power | 1 x Barrel Input |
Other I/O | 1 x USB Type-C |
Card Slot | 2 x SD |
Wi-Fi | None |
· Format Support
Video Format | SDI (10-Bit 4:2:2 RGB) |
Gamma Curve | HDR-HLG, Rec2020, Rec709 |
· Recording
Pre-Roll Record | None |
Encoding Formats | Up to 4096 x 2160 |
Maximum Audio Tracks | 16 |
Recording Media | 2 x SDXC (UHS-II) |
Phantom Power | +48 V |
· Power
DC Input Power | 12 VDC |
Battery Type | 2 x L-Series |
· Environmental
Operating Humidity | 0 to 90% |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
· General
Dimensions (W x H x D) | 7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm |
Weight | 29.1 oz / 824.99 g |
Warranty Length | Limited 1-Year Warranty |
·
