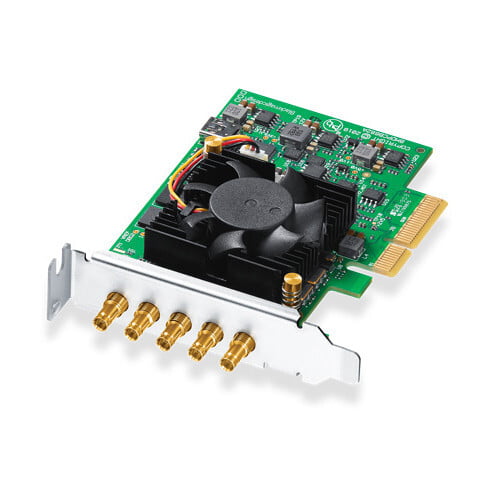

Blackmagic Design DeckLink Duo 2 Mini

Supported Operating Systems

macOS 10.13, 10.14 or Later
Windows 7, 8.1, 10 (All 64-Bit)
Linux

Inputs/Outputs

4 x Mini BNC 3G-SDI (Bidirectional, 12-Bit SD/HD)
1 x Reference In

Sync Input

Tri-Sync or Black Burst

Computer Interface

PCI Express 4 Lane Generation 2 (Compatible with 4, 8 and 16 Lane PCI Express Slots)

Audio Channels

16 x Embedded, HD and SD (Input and Output)

Video Support

HD:
1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF: 23.98, 24, 25, 29.97, 30
1080i: 50, 59.94, 60
720p: 50, 59.94, 60

SD:
525i: 59.94 NTSC
625i: 50 PAL

Audio Sample Rate

24-Bit, 48 kHz

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2, Uncompressed 10-Bit 4:4:4

Conversion Modes

Playback: 720p to 1080p, 1080p to 720p
Up Conversion: SD to 720p or 1080p (Selectable: 4:3, 14:9 Zoom, and 16:9 Zoom)
Down Conversion: SD (Selectable: Letterbox and Anamorphic 16:9)
Color Space Conversion: Hardware-Based, Real-Time

Color Space

Rec. 601, Rec. 709

SDI Color Precision

8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
8, 10-Bit YUV 4:2:2 (In All Modes)
12-Bit RGB 4:4:4 (Supported in Playback Mode Only)

SDI Video Sampling

8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
8, 10-Bit YUV 4:2:2 (In All Modes)
12-Bit RGB 4:4:4 (Supported in Playback Mode Only)

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601

SDI Metadata Support

RP 188/SMPTE 12M-2 and Closed Captioning

Power Consumption

10 W

Certifications

FCC, CE, and C-Tick

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Relative Humidity (non-condensing)

0 to 90%

Length

3.9" / 9.9 cm, Low-Profile Form Factor

Weight

3.1 oz / 87 g
