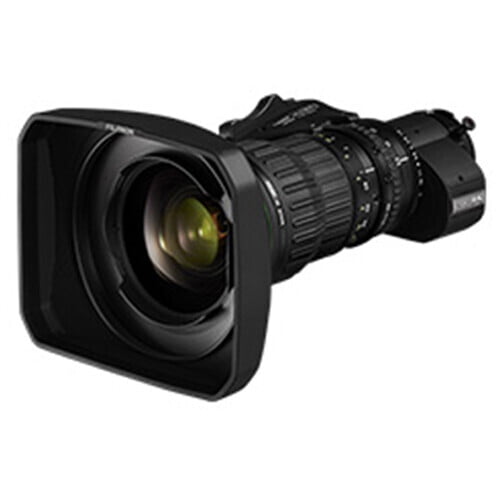

Fujinon UA18x5.5BERD-S10 4K Broadcast Zoom Lens
UA18x5.5BE weights only 2.04kg, it covers focal lengths from 5.5mm on the wide angle end to 100mm on the telephoto end. It makes it useful for production situations that require added mobility, e.g. news reporting and on-location production for various programs.
Model Name | UA18x5.5BERD | |
Camera specifications | 2/3-inch sensor Bayonet-mount cameras | |
Focal length | 1x | 5.5mm -100mm |
2x | 11mm – 200mm | |
Zoom ratio | 18x | |
Extender | 2x | |
Maximum aperture ratio | 1:1.8 (5.5mm – 62mm) 1:2.9 (100mm) | |
Minimum object distance (M.O.D) from the front lens element | 0.4m | |
Subject dimensions | 1x | 5.5mm 800mm x 450mm |
2x | 11mm 395mm x 222mm | |
Angle of view | 1x | 5.5mm 82.2° x 52.2° |
2x | 11mm 47.1° x 27.5° | |
Filter thread size | M127 x 0.75 (A filter is to be attached to the lens hood.) | |
Dimensions (approx.) | Φ95 x 240.5mm (Φ x Full length) | |
Weight (approx.) | 2.04kg (without the lens hood) |
