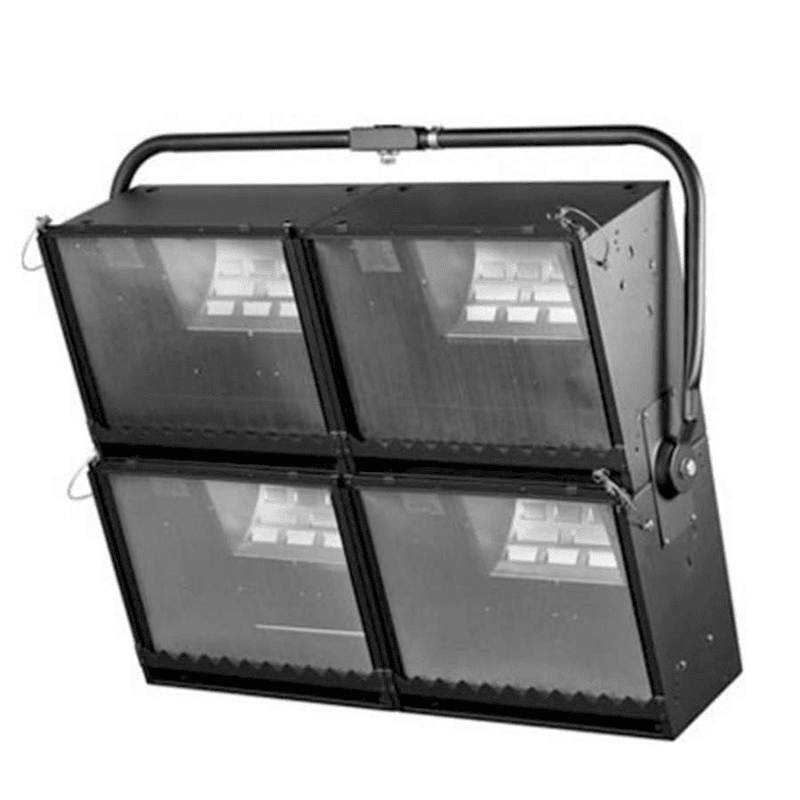

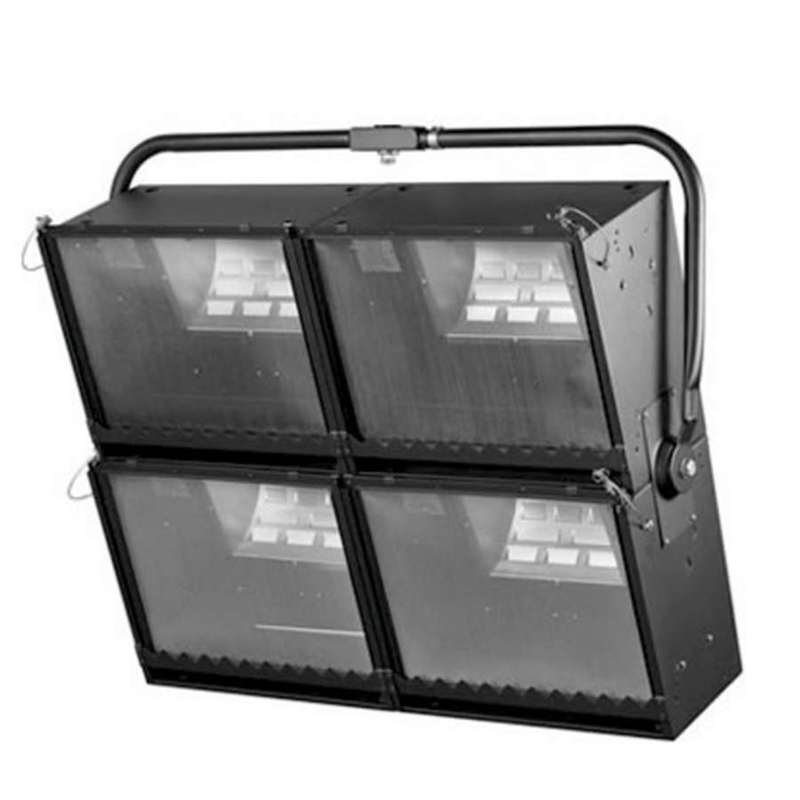

Quartzcolor IRIS 4 - 1250W x 4 CYCLORAMA SOFTLIGHT (USED)

Power consumption

5000 W

Supply voltage

120 – 240 V

Tilt adjustment

Pivot located at centre of gravity for excellent balance and positive locking

Tilt recommended angle of use

Vertical to -45°

Focus adjustment

Fixed beam

Accessory fitting

Built-in accessory support frame fitting enabling an easy and secure vertical slide of wire mesh safety guard and gel frame

For extra safety, the accessories are held in place with a safety bond

Colour frame

400 mm x 305 mm (with safety mesh)

Filter cut size diameter

395 mm x 305 mm

Lamp holder

R7s

Lamp access

After removal of wire mesh safety access guard 3 mm x 3 mm

Safety mesh

Compartment fitted with wire mesh safety guard 3 mm x 3 mm

IP rating

IP 20

Max operating ambient temperature

45°

Optical Data

Reflector

Asymmetric multi-curve reflectors with special anodised coating for high-efficiency finish

Mechanical Data

Finish

High-quality epoxy powder coating

Special extra high-temperature treatment in critical areas

External textured low gloss finish

Lamp housing

Formed sheet steel lamp housing house compartment

PO mounting

Pole Operated U-shaped square base stirrup, pan & tilt clutch gear mechanism for manual override, with lateral assembly plates, 28 mm (1 1/8") spigot

PO mounting split version

Pole Operated U-shaped square base stirrup, pan & tilt clutch gear mechanism for manual override, 2+2 luminaires, with lateral assembly plates, 28 mm (1 1/8") spigot

Electrical

PO version

5 m bare ended cable (no switch) on each compartment, 3 x 1.5 mm² section cable

Plugs and cables upon request

PO split version

5 m bare ended cable (no switch) on each compartment, 3 x 1.5 mm² section cable

Plugs and cables upon request

Dimensions

Weight (head + stirrup)

26.5 kg

Packed volume

950 mm x 730 mm x 350 mm
