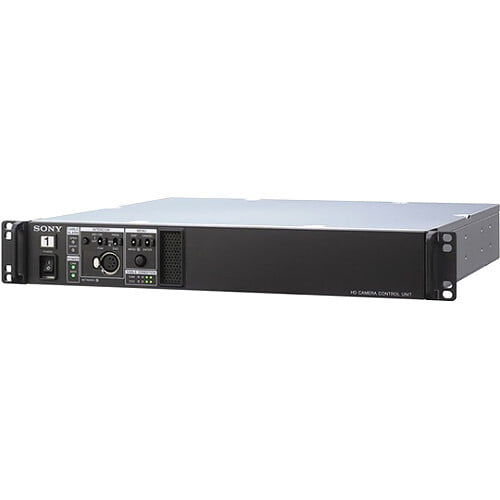

Sony Digital Triax Camera Control Unit for HXC-D70 and PMW-320/350/400/500

Camera

1 x Triax

Intercom

Tally/PGM: 1 x D-sub 25-pin, female
Intercom (PROG/ENG), 4 W/RTS/CC, 0 dBu
Tally (R, G)
PGM 2 systems, -20/0/+4 dBu

Remote

1 x 8-pin multi-connector

Trunk

WF Mode/Microphone Remote/WF Remote: 1 x D-sub 25-pin, female
Trunk: RS-422 A 1 system

LAN

1 x RJ-45, 10BASE-T, 10BASE-TX

AC Input

AC 100 V to 240 V

Serial Input

Return: 2 x BNC
HD-SDI: SMPTE 292M, 0.8 Vp-p, 75 ohm, 1.485/1.4835 Gbps
SD-SDI: SMPTE 259M, 270 Mbps
HD-SDI/SD-SDI selectable

Return

VBS Input: 2 x BNC
VBS: 1.0 Vp-p, 75 ohm

Reference Input

1 x BNC with loop-though output BNC
HD: SMPTE 274M, tri-level sync, 0.6 Vp-p, 75 ohm
SD: black burst
(NTSC: 0.286 Vp-p, 75 ohm; PAL 0.3 Vp-p, 75 ohm

Input

Prompter: 2 x BNC, VBS signal, 1.0 Vp-p, 75 ohm, 2 channel

Microphone Output

2 x XLR 3-pin male, 0/-20 dBu

Output

HD-SDI/SD-SDI Monitor:
2 x BNC
HD-SDI: SMPTE 292M, 0.8 Vp-p, 75 ohm, 1.485/1.4835 Gbps
SD-SDI: SMPTE 259M, 0.8 Vp-p, 75 ohm, 270 Mbps
HD-SDI/SD-SDI selectable

Monitor Output

2 x BNC
HD-SDI: SMPTE 292M, 0.8 Vp-p, 75 ohm, 1.485/1.4835 Gbps
SD-SDI: SMPTE 259M, 0.8 Vp-p, 75 ohm, 270 Mbps
HD-SDI/SD-SDI selectable

Component Video

Pr/R/R-Y, Y/G/Y, Pb/B/B-Y:
HD component video: Y (100% white): 0.7 Vp-p
Pr/Pb (75% color bar): 0.7 Vp-p, 75 ohm
HD RGB video R/G/B (100% white): 0.7 Vp-p, 75 ohm
SD component video: Y (100% white): 0.714 Vp-p
Pr/Pb (75% color bar): 0.756 Vp-p, 75 ohm
SD RGB video R/G/B (100% white): 0.7 Vp-p, 75 ohm

Output

VBS: 2 x BNC, VBS 1.0 Vp-p, 75 ohm
PIX: 1 x BNC, VBS/R/G/B (VBS a1.0 Vp-p, 75 ohm)
Sync/WF: 1 x BNC
Sync: HD: BTA-S001 A, tri-level, 0.6 Vp-p, 75 ohm
SD: composite sync, 0.3 Vp-p, 75 ohm
HD sync/SD sync selectable
WF: VBS/SEQ/R/G/B (VBS 1.0 Vp-p, 75 ohm)

Power Supply

AC 100 V to 240 V, 50/60 Hz

Operating Temperature

Storage Temperature

-4-140°F (-20-60°C)

Weight

17.41 lb (7.9 kg)

Package Weight

22.85 lb

Box Dimensions (LxWxH)

22.3 x 22.1 x 8.5
