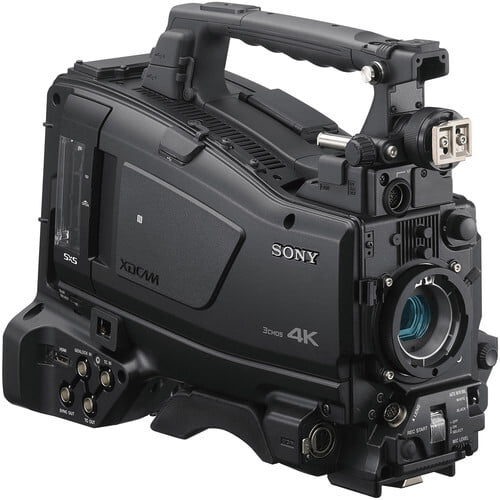

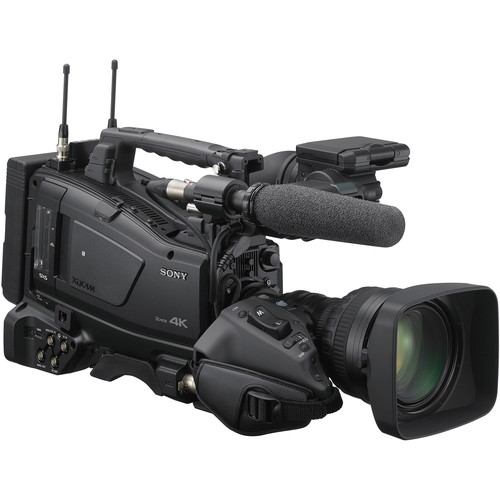

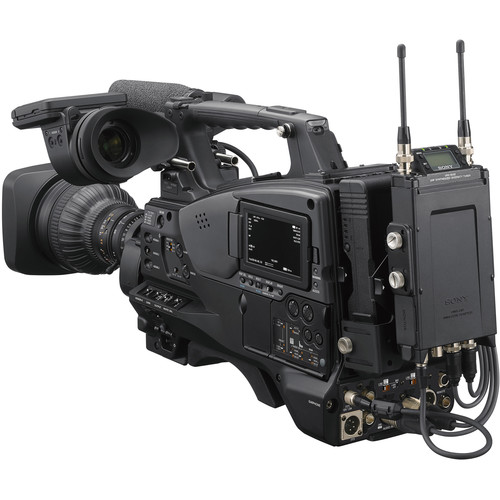

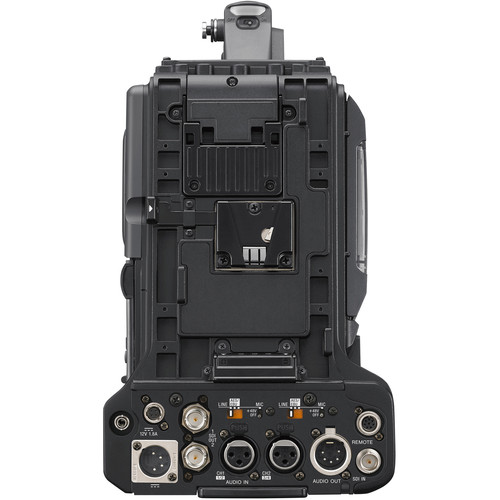

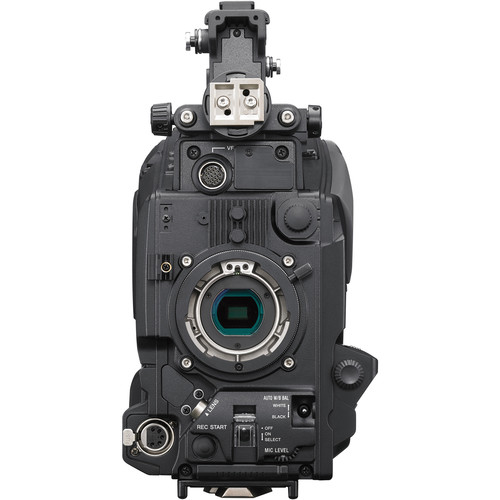

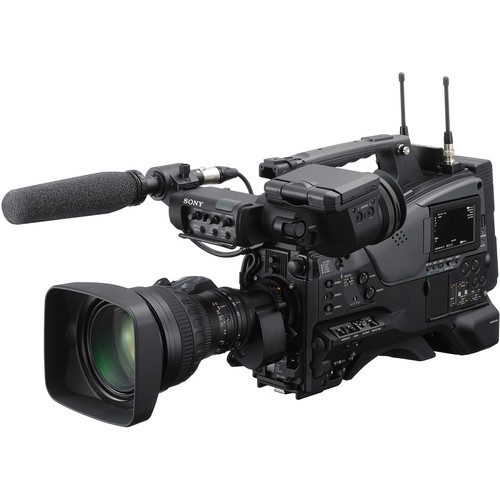

Sony PXW-Z750 4K Shoulder-Mount Broadcast Camcorder (Body Only)

Image Sensor

3-Chip 2/3" CMOS Sensor

Effective Sensor Resolution

3840 x 2160

Horizontal Resolution (TV Lines)

2000 TV Lines or More

Gain

-3 to 42 dB

Sensitivity

f/12 at 13 lux 89.9% Reflectance

Signal-to-Noise Ratio

62 dB

Minimum Illumination

0.019 Lux

Lens Mount

B4 Mount

Shutter Speed

1/2 to 1/2000 sec

Built-In ND Filter

Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Recording Media

2 x SxS Card Slots

Recording Modes

XAVC-I 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (300 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (100 Mb/s)
1920 x 1080i at 50/59.94 fps (100 Mb/s)
XAVC-L 4:2:0 8-Bit:
3840 x 2160p at 50/59.94 fps (200 Mb/s)
3840 x 2160p at 50/59.94 fps (150 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (50 Mb/s)
1920 x 1080i at 50/59.94 fps (50 Mb/s)
MPEG HD422 4:2:2:
1920 x 1080p at 23.98/25/29.97 fps
1920 x 1080i at 50/59.94 fps
1280 x 720p at 23.98/25/29.97/50/59.94 fps
MPEG HD420 4:2:0:
1920 x 1080p at 23.98/25/29.97 fps
1920 x 1080i at 50/59.94 fps
1440 x 1080i at 50/59.94 fps
1280 x 720p at 50/59.94 fps

Variable Frame Rates

UHD: 1 to 60 fps
1080p: 1 to 120 fps

Gamma Curve

HDR-HLG, Sony S-Log 3

Audio Recording

XAVC: 4-Channel 24-Bit 48 kHz LPCM Audio
MPEG: 4-Channel 24-Bit 48 kHz LPCM Audio

Video Connectors

1 x BNC (HD-SDI) Input
2 x BNC (12G-SDI) Output
1 x HDMI Output

Audio Connectors

2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 5-Pin XLR Mic/Line Level Input
1 x 5-Pin XLR Mic/Line Level Output
1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x RJ45 LAN
1 x 20-Pin Viewfinder
1 x 50-Pin
1 x 8-Pin Hirose Control
1 x 12-Pin Lens Control
2 x USB Type-A
1 x USB Type-B
1 x RJ45 LAN
1 x BNC Timecode Input
1 x BNC Genlock Input
1 x DE-15/DB-15 Wireless Receiver Input

Wireless Interfaces

Wi-Fi, NFC Video Output, Audio Output, Control

Global Positioning

GPS

Display Type

Articulating LCD

Size

3.5"

Resolution

960 x 540

Battery Type

V-Mount

Power Connectors

1 x 4-Pin Hirose (11 to 17 VDC up to1.8 A) Output
1 x 2-Pin Light Output
1 x 4-Pin XLR (11 to 17 VDC) Input

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions

5.91 x 10.59 x 13.07" / 15.01 x 26.9 x 33.2 cm

Weight

8.38 lb / 3.8 kg

Warranty Length

Limited 1-Year Warranty

Package Weight

11.895 lb

Box Dimensions (LxWxH)

21.4 x 15.9 x 9.9"
