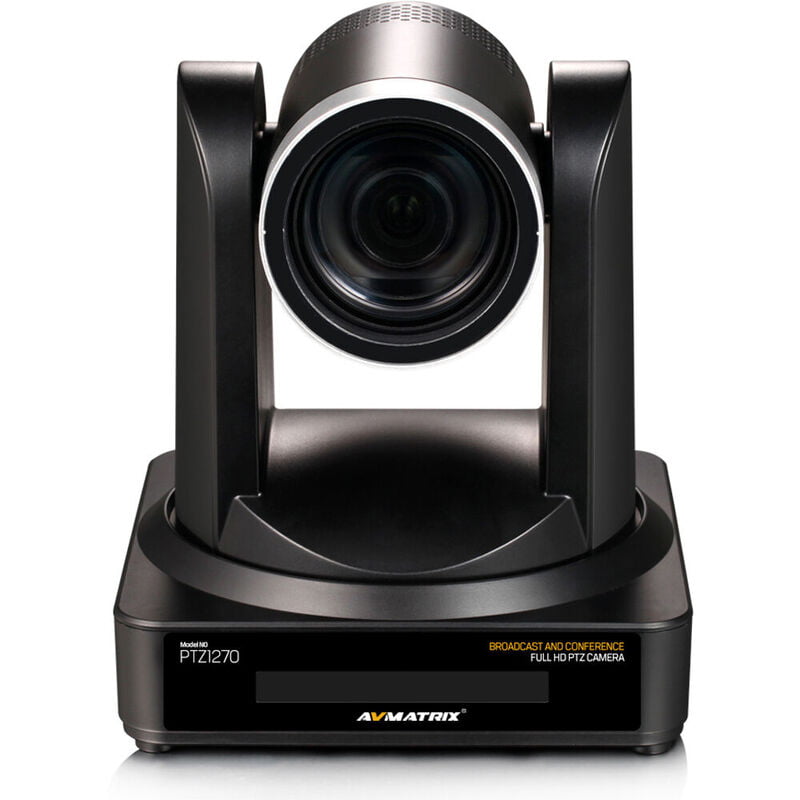

AVMATRIX PTZ1270 Full HD PTZ Camera (12x Optical Zoom)

Image Sensor

1-Chip 1/2.8" CMOS Sensor

Sensor Resolution

Effective: 2.07 Megapixel

Signal-to-Noise Ratio

55 dB

Minimum Illumination

0.5 Lux

White Balance

3000 to 6500K

Max Digital Zoom

10x

Optical Zoom Ratio

12x

Focal Length

3.9 to 46.8mm

Field of View

6.3 to 72.5°

Maximum Aperture

f/1.8 to 2.4

Focus Control

Autofocus

Output Formats

SDI, HDMI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps

IP Streaming

ONVIF, RTMP, RTSP: 1080p

Presets

255 via RS-232, VISCA
10 via IR

Move Speed

Pan: 0.1 to 180°/sec
Tilt: 0.1 to 80°/sec

Movement Range

Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)

Supported Control Protocols

Pelco-D
Pelco-P
VISCA

Video Output Connectors

1 x HDMI Type A (HDBaseT)
1 x BNC (3G-SDI)

Audio I/O

1 x 1/8" / 3.5 mm Stereo Line Level Input

Control Interface

1 x RJ45 (Pelco-D, Pelco-P, VISCA)
1 x 8-Pin Mini-DIN (RS-232) Input
1 x 8-Pin Mini-DIN (RS-232) Output
1 x 2-Wire (RS-485)

PoE Support

None

Power Connectors

1 x Barrel / Coaxial (12 VDC at 1 A)

Operating Temperature

14 to 122°F / -10 to 50°C

Storage Temperature

14 to 140°F / -10 to 60°C

Operating Humidity

20 to 80%

Storage Humidity

20 to 95%

Tripod Mounting Thread

1 x 1/4"-20 Female

Dimensions

6.6 x 5.9 x 5.9" / 167.5 x 150 x 150 mm

Weight

3.08 lb / 1.4 kg

Package Weight

Box Dimensions (LxWxH)

10.5 x 9.8 x 9.2"
