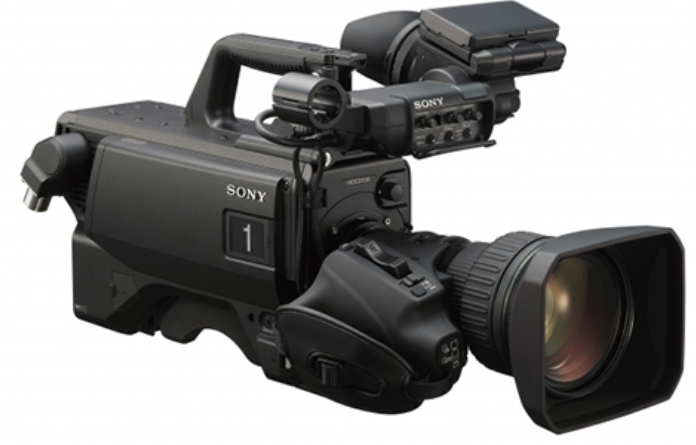

Sony HDC-3100 - Three 2/3-inch CMOS sensors portable system camera for fibre operation

Power requirements

AC 240 V, 1.05 A (max.), DC 240 V, 1.05 A (max.)

Operating temperature

20°C to +45°C (.4°F to 113°F)

Storage temperature

20°C to +60°C (.4°F to 140°F)

MassApprox.

4.8 kg (10 lb 9 oz)

Imager

2/3 inch type CMOS sensor with global shutter

Method

3-CMOS, RGB

Sensitivity

F12 with 1080/59.94i, F13 with 1080/50i (at 2,000 lx with 89.9% reflectance)

Signal-to-noise ratio

-62 dB or higher

Horizontal resolution

1,000 TV lines (at center of screen), 5% or higher modulation

Geometric distortion

Negligible (not including lens distortion)

Spectrum system

F1.4 prism

Built-in filters

1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND

CCU

Electro-optical connector (LEMO 3K.93C connector) (x1)

LENS

12-pin (x1)

VF

20-pin (x1)

MIC 1 IN

XLR 3-pin, female (x1)

AUDIO IN CH1, CH2

XLR 3-pin, female (x1 each); AUDIO switch for MIC: –60 dBu (can be selected up to –20 dBu in the menu), balanced ; AUDIO switch for LINE: 0 dBu, balanced

INTERCOM 1, INTERCOM 2

XLR 5-pin, female (x1)

EARPHONE

4-pole mini jack (x1), (2-pole mono, 3-pole stereo, 4-pole CTIA standard, 4-pole OMTP standard)

DC IN

XLR 4-pin (x1), DC 10.5 to 17 V

DC OUT

4-pin (x1), DC 10.5 to 17 V, max. 0.5 A*¹, 2-pin (x1), DC 10.5 to 17 V, Max. 2.5 A*; BNC (x1); No (*This may be limited by the imposed load or inputs)

SDI MONI

BNC (x1)

TEST OUT

BNC (x1)

PROMPTER/GENLOCK

BNC (x1), PROMPTER 1 Vp-p, 75 Ω, GENLOCK HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω, SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω)

PROMPTER2

No

RET CTRL

6-pin (x1)

REMOTE

8-pin (x1)

TRACKER

12-pin (x1)

CRANE

No

USB

USB 2.0 Type A 4-pin (x1) (for connecting USB drive)

NETWORK TRUNK

No

Supplied accessories

Before Using This Unit (1), Operating Instructions (CD-ROM) (1), Cable clamp belt (1 set), Screws (+B3×8) (2), Attached label (1), Camera number label (1)
