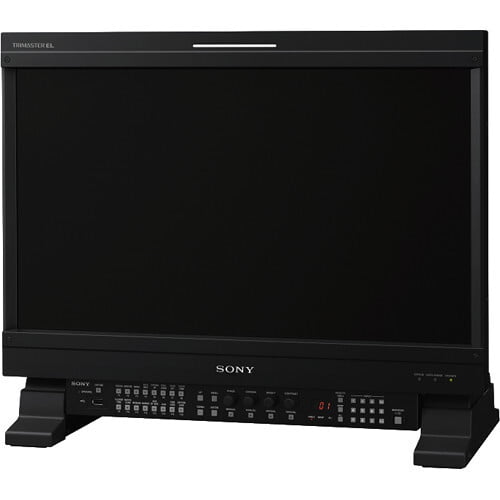

Sony BVM E251 24.5" TRIMASTER EL OLED Critical BVM E251

Panel

OLED panel

Picture Size

24.5" (622 mm)

Effective Picture Size (H x V)

21.5 x 12.1" (546.1 x 307.3 mm)

Resolution (H x V)

1920 x 1080p (Full HD)

Aspect Ratio

16:9

Pixel Efficiency

99.99%

Panel Drive

RGB 10-bit

Panel Frame Rate

48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)

Viewing Angle

89°/89°/89°/89° (typical) (up/down/left/right contrast >10:1)

Luminance

100 cd/m² (preset1 to preset5 at EOTF 2.4)
48 cd/m² (preset (DCI)) (1.0 Vp-p reference signal, 100% white signal input)

Color Temperature

D55, D61, D65, D93, DCI, DCI XYZ and user 1-5 (5000K to 10,000K adjustable)

Color Space

ITU-R BT.2020*2, ITU-R BT.709, EBU, SMPTE-C, DCI-P3*2, BVM E251 Native, S-Gamut/S-Gamut3, S-Gamut3.cine

Transmission

Matrix: ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709, ITU-R BT.601, SMPTE 240M

EOTF

2.2, 2.4, 2.6, CRT, S-Log3 (SDR), S-Log2 (SDR)

Input

SDI: 2 x BNC
HDMI: 1 x (HDCP correspondence, deep color correspondence)
Composite Video: 1 x BNC
Parallel Remote: 1 x RJ45 modular connector 8-pin (Pin-assignable)
Serial Remote (LAN): 1 x Ethernet (10BASE-T/100BASE-TX), RJ45
DC Input: 1 x XLR

Output

SDI: 2 x BNC
Composite Video: 1 x BNC
12 VDC Output: 1 x Circle 4-pin (female)

Power Requirement

100 to 240 VAC, 1.2 to 0.6 A, 50/60 Hz, 24 to 28 VDC, 4.5 to 3.9 A

Power Consumption

Approximately 117 W (AC power supply)
Approximately 107 W (DC power supply)
Approximately 55 W (AC power supply)
Approximately 51 W (DC power supply) average power consumption in the default status

Operating Temperature

32 to 95°F (0 to 35°C)
Recommended: 68 to 86°F (20 to 30°C)

Operating Humidity

30% to 85% (no condensation)

Storage Temperature

-4 to 140°F (-20 to 60°C)

Storage Humidity

0% to 90%

Pressure Level

Operating, Storage, and Transport: 700 hPa to 1060 hPa

Dimensions

22.7 x 16.7 x 5.8" (576 x 424 x 148 mm)
Height without Legs: 16" (408 mm)

Weight

Approximately 22.6 lb (10.3 kg)
