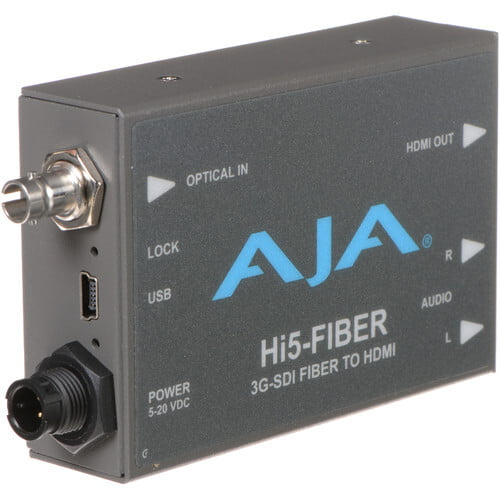

AJA Hi5-Fiber HD/SD-SDI Over Fiber to HDMI Video and Audio Mini-Converter
$879.00
Tags:
Hi5-Fiber converts 3G-SDI over single mode 1310 nm Fiber optic cable (ST-style Fiber connector) to HDMI for driving HDMI monitors.
Product Details
SPECIFICATION
Video Formats
- (2K) 2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2K x 1080PsF* 23.98, 24, 25, 29.97, 30
- (HD) 1080i 50, 59.94, 60
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080PsF* 23.98, 24, 25, 29.97, 30
- (HD) 720p 50, 59.94, 60
- (SD) 625i
- (SD) 525i
*NOTE: converts to progressive
Video Input
- Single mode optical fiber, ST connector supporting SMPTE-259/292/424 3G/HD/SD-SDI
Video Outputs
- HDMI with embedded audio up to 8-Channels (selectable by Mini-Config)
- 12-bit
- 10-bit YCbCr 4:2:2
- 8-bit RGB 4:4:4
Audio Input
- SDI embedded audio, select from 16-Channels
Audio Output
• 2-Channel RCA style (-10 dBu nominal)
Size (w x d x h)
- 4.6" x 2.4" x 1.0" (116.84 x 60.96 x 25.4 mm)
Weight
- 0.4 lb (0.2 kg)
Power
- Uses AJA power supply model DWP-U-R1, included with purchase
- 100-240V, 50/60 Hz universal input
- +5V DC regulated, 3 watts
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
