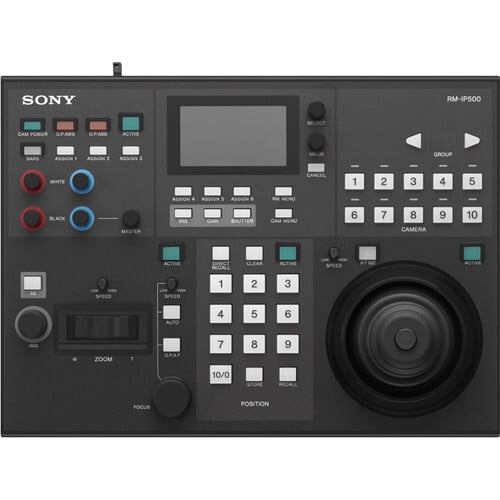

Sony RM-IP500/1 Professional Remote Controller for Select Sony PTZ Cameras

I/O Connections

VISCA RS-422: 1 x RJ-45
GPI (Tally In/Contact Out): D-Sub 15-pin (female)
LAN: 1 x RJ-45 10BASE-T/100BASE-TX (automatic detection)

Control Signal

9,600 bps/38,400 bps
Data: 8-bit
Stop Bit: 1 (for RS-422 communication), VISCA over IP communication

Power

Connector: JEITA-type 4 (12 VDC in)
Input Voltage: 10.8 to 13.2 VDC
Current Consumption: 0.2 A typical (2.4 W)

Temperature

Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C

Dimensions

12.05 x 6.27 x 8.82" / 30.6 x 15.93 x 22.4 cm

Weight

5.3 lb / 2.4 kg

Package Weight

Box Dimensions (LxWxH)

15.9 x 12.6 x 10.2"
