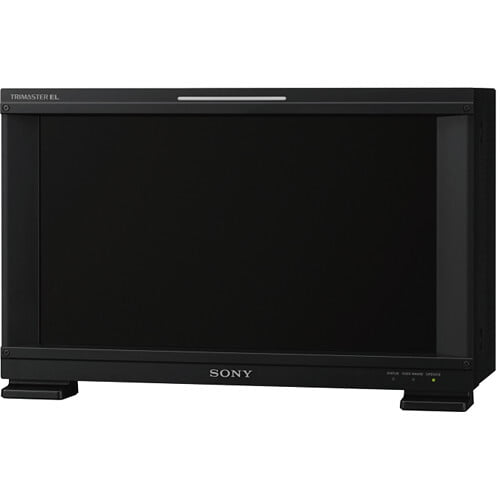

Sony BVM E171 16.5" TRIMASTER EL OLED Critical Reference Monitor

Panel

OLED panel

Picture Size

16.5" (419 mm)

Effective Picture Size (H x V)

14.5 x 8.1" (368.3 x 205.7 mm)

Resolution (H x V)

1920 x 1080p (Full HD)

Aspect Ratio

16:9

Pixel Efficiency

99.99%

Panel Drive

RGB 10-bit

Panel Frame Rate

48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)

Viewing Angle

89°/89°/89°/89° (typical) (up/down/left/right contrast >10:1)

Luminance

100 cd/m² (preset1 to preset5 at EOTF 2.4)
48 cd/m² (preset (DCI)) (1.0 Vp-p reference signal, 100% white signal input)

Color Temperature

D55, D61, D65, D93, DCI, DCI XYZ and user 1-5 (5000K to 10,000K adjustable)

Color Space

ITU-R BT.2020*2, ITU-R BT.709, EBU, SMPTE-C, DCI-P3*2, BVM E171 Native, S-Gamut/S-Gamut3, S-Gamut3.cine

Transmission

Matrix: ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709

EOTF

2.2, 2.4, 2.6, CRT, S-Log3 (SDR), S-Log2 (SDR)
2.2, 2.4, 2.6, CRT, S-Log3 (HDR), S-Log3 (Live HDR), S-Log2 (HDR), ITUR BT.2100 (HLG), SMPTE ST2084, 2.4 (HDR) when it activates the HDR monitoring features

Input

SDI: 2 x BNC
HDMI: 1 x (HDCP correspondence, deep color correspondence)
Composite Video: 1 x BNC
Parallel Remote: 1 x RJ45 modular connector 8-pin (Pin-assignable)
Serial Remote (LAN): 1 x Ethernet (10BASE-T/100BASE-TX), RJ45
DC Input: 1 x XLR

Output

SDI: 2 x BNC
Composite Video: 1 x BNC
12 VDC Output: 1 x Circle 4-pin (female)

Power Requirement

100 to 240 VAC, 0.9 to 0.5 A, 50/60 Hz, 24 to 28 VDC, 3.3 to 2.9 A

Power Consumption

Approximately 88 W (AC power supply)
Approximately 78 W (DC power supply)
Approximately 53 W (AC power supply)
Approximately 49 W (DC power supply) average power consumption in the default status

Operating Temperature

32 to 95°F (0 to 35°C)
Recommended: 68 to 86°F (20 to 30°C)

Operating Humidity

30% to 85% (no condensation)

Storage Temperature

-4 to 140°F (-20 to 60°C)

Storage Humidity

0% to 90%

Pressure Level

Operating, Storage, and Transport: 700 hPa to 1060 hPa

Dimensions

17.3 x 11.3 x 6.3" (436 x 282.4 x 156.5 mm)
Height without Legs: 10.5" (266.4 mm)

Weight

Approximately 14.3 lb (6.5 kg)

Package Weight

21.06 lb

Box Dimensions (LxWxH)

21 x 15.75 x 12.5"
