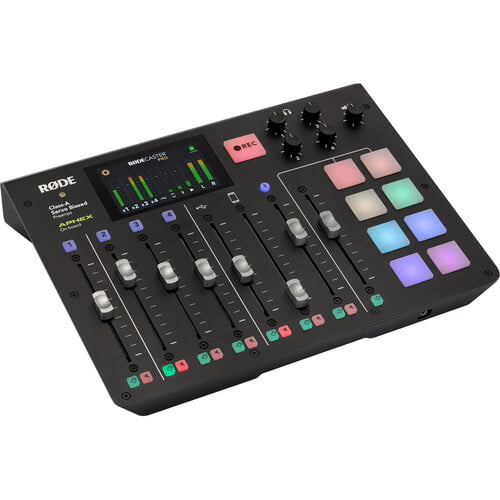

Rode RODECaster Pro II Integrated Podcast Production Studio

Form Factor

Tabletop

Display

1 x Touchscreen

Channels of I/O

USB:
14 Input / 2 Output

Max Sample Rate/Resolution

48 kHz / 24-Bit

Number of Mic Preamps

4

Input Level Adjustment

8 x Fader

Number of Headphone Mixes

4 x Guest with Mix-Minus

Solo/Mute

Mute per Input Channel

Sample Pads

8 x Assignable

Analog Audio I/O

4 x XLR 3-Pin Balanced Mic Input
1 x 1/8" / 3.5 mm TRRS Unbalanced Line Input
4 x 1/4" TRS Unbalanced Headphone Output
2 x 1/4" TRS Balanced Monitor Output
1 x 1/8" / 3.5 mm TRS Unbalanced Headphone Output

Phantom Power

+48 V (Selectable on Individual Inputs)

Digital Audio I/O

None

Host Connection / USB

1 x USB Type-C

Wireless Connectivity

Bluetooth

Memory Card Slot

1 x microSD (Unspecified Type)

Frequency Response

Mic Inputs:
20 Hz to 20 kHz ±3 dB
Monitor Outputs:
20 Hz to 20 kHz ±0.5 dB

Gain/Trim Range

Mic Inputs:
0 dB Up to +50 dB

Max Output Level

Monitor Outputs:
+3 dBu

Headphone Output Power

220 mW into 32 Ohms
31 mW into 300 Ohms

Impedance

Mic Inputs:
600 Kilohms (Balanced)

Dynamic Range

Mic Inputs:
100 dB

EIN

-125 dBA

Sample Rates

48 kHz (AD/DA Conversion)

Bit Depths

24-Bit (AD/DA Conversion)

OS Compatibility

macOS 10.11
Windows 10

Power Requirements

AC/DC Power Adapter (Included)

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC/DC Power Adapter

12 V at 5000 mA, Center-Positive (Included)

Anti-Theft Features

None

Dimensions

13.8 x 10.8 x 3.2" / 350 x 275 x 82 mm

Weight

4.2 lb / 1.9 kg

Package Weight

8 lb

Box Dimensions (LxWxH)

16.5 x 13.5 x 5"
