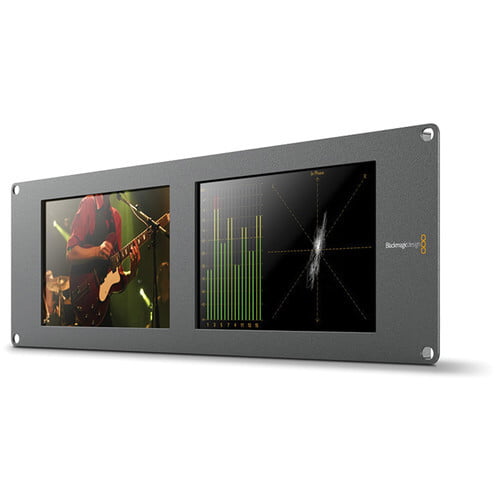

Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors
The Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors is a monitoring solution for studio and location productions, displaying video with resolutions up to 3840 x 2160 at 30p. It features two 8" monitors each with a loop-through SDI input and output.
Specification
Display
Number of Displays | 2 |
Panel Type | TFT LCD |
Display Size | 8.0" / 20.3 cm |
Screen Resolution | 800 x 480 |
Aspect Ratio | 16:9 |
Touchscreen | No |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
Pixels Per Inch (ppi) | 117 ppi |
Real-Time LUT Monitoring | SDR |
Image Controls | Blue Only, Focus Peaking, Histogram, Image Flip, Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform |
I/O
Video | 2 x BNC (6G-SDI) Output |
Embedded Audio | SDI: 16-Channel |
Audio | None |
Built-In Speaker | None |
Other I/O | 2 x LAN (RJ45) |
Card Slot | None |
Wi-Fi | None |
Format Support
Video Format | SDI (4:4:4) |
Power
DC Input Power | 12 to 15 VDC |
Battery Type | None |
Power Consumption | 20 W (Maximum) |
Mounting
Rack Form Factor | 3 RU |
Environmental
Operating Humidity | 0 to 90% |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
General
Dimensions (W x H x D) | 19 x 5.2 x 1.3" / 48.3 x 13.3 x 3.2 cm |
Weight | 3.37 lb / 1.53 kg |
Warranty Length | Limited 1-Year Warranty |
