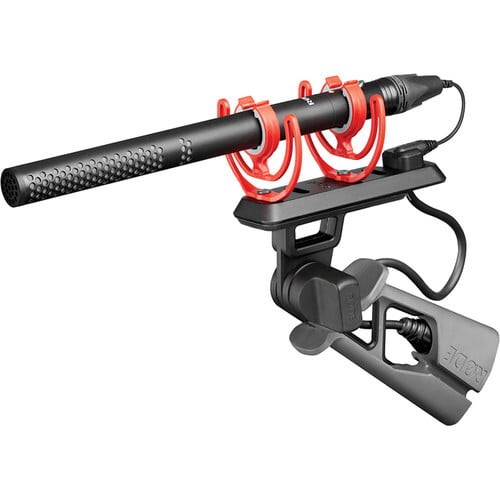

Rode NTG5 Moisture-Resistant Short Shotgun Microphone
Shorter and lighter than the NTG3 and with a flatter bass response, the Rode NTG5 moisture-resistant shotgun microphone lets you capture natural, uncolored sound indoors or outside for your next indie film, TV shoot, or documentary project without weighing down your rig.
Specification
Microphone
Form Factor | Stand/Boom Mount |
Sound Field | Mono |
Operating Principle | Line Gradient |
Capsule | Condenser |
Polar Pattern | Supercardioid |
Orientation | End Address |
Circuitry | Solid-State |
Pad | None |
High-Pass Filter | None |
Tone Adjustment | None |
Indicators | None |
On-Board Controls | None |
Windscreen | Foam, Windsock/Windjammer (Included) |
Performance
Frequency Range | 20 Hz to 20 kHz |
Maximum SPL | 130 dB SPL |
Off-Axis Rejection | 4 dB at 60° |
Impedance | 25 Ohms |
Sensitivity | -23.5 dBV/Pa at 1 kHz |
Signal-to-Noise Ratio | 84 dB |
Equivalent Noise Level | 10 dB A-Weighted |
Connectivity
Output Connectors (Analog) | 1 x XLR 3-Pin Male (on Mic) |
Wireless Connectivity | None |
Power
Operating Voltage | 48 V |
Operating Current Consumption | 2 mA |
Physical
Color | Black |
Mounting | Mic Clip, Shockmount (with Included Hardware) |
Construction Material | Aluminum |
Dimensions | ø: 0.75 x L: 7.99" / ø: 19 x L: 203 mm (Microphone) |
Weight | 2.68 oz / 76 g (Microphone) |
Packaging Info
Package Weight | 2.15 lb |
Box Dimensions (LxWxH) | 9.7 x 9.4 x 3.4" |
