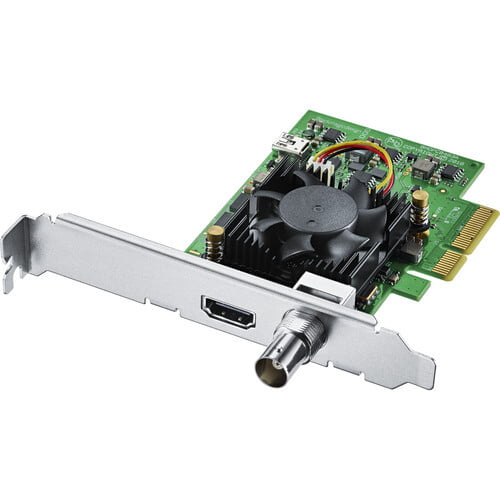

Blackmagic Design DeckLink Mini Recorder 4K

Host Connection

PCIe x4 (PCIe 2.0)

Video Input Connectors

1 x BNC (6G-SDI) Female
1 x HDMI (HDMI 2.0a) Female

Input Video Format

SDI (8/10-Bit 4:2:2 YUV)
DCI 4K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30 fps
DCI 2K: 23.98/24/25 fps
DCI 2KPsF: 23.98/24/25 fps
SDI (8/10/12-Bit 4:4:4 RGB)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
PAL
NTSC
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
PAL
NTSC

Audio Input Connectors

None

Embedded Audio Input

SDI: 16-Channel
HDMI: 8-Channel

Video Standard Compliance

SMPTE 259M/292M/296M/372M/425M/ST-2081
ITU -R BT.601/BT.656

OS Compatibility

Windows 7 or Later
macOS 10.14 or Later
Linux

Power Consumption

8 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Dimensions

4.7" / 11.94 cm

Weight

3.17 oz / 90 g

Limited 3-Year Warranty
