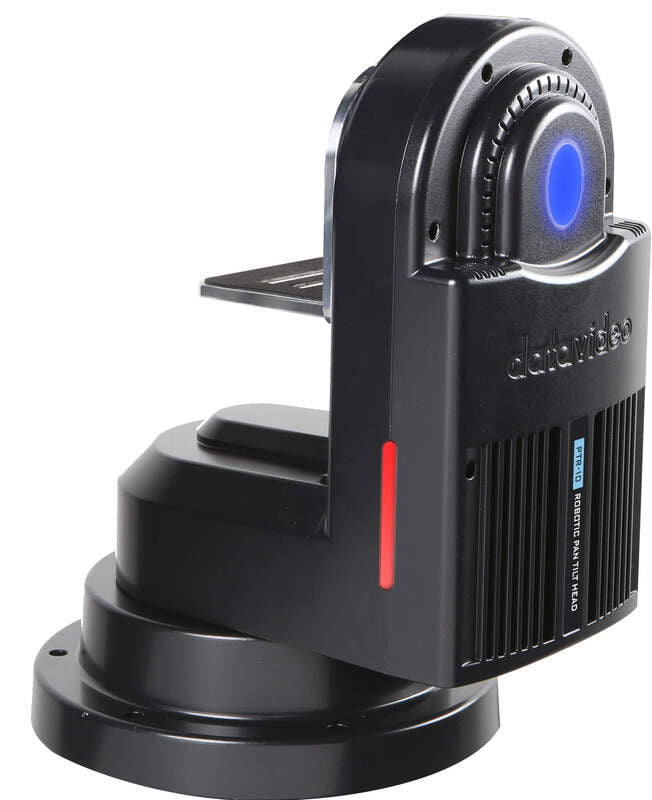

DATAVIDEO PTR-10 - Robotic Pan Tilt Head

Video Interface

HDMI x 1
SDI x 1

Video Output

2160p 29.97/25 (Via HDMI Only)
1080p 59.94/50
1080i 59.94/50
720p 59.94/50

Control Unit

RMC-180
RMC-300C
VISCA Protocol Controller
IP Control
IR remote

Panning / Tilting Range

Pan: 340°
Tilt: ±45°

Panning / Tilting Speed

Pan: 0.2~15° /Sec
Tilt: 0.1~10° /Sec

Preset

Pan/Tilt position 50

Control Distance

1,200M by RS422
100M by DVIP

Control Protocol

Sony VISCA
DVIP

Control Input

RS-422
DVIP

Maximum Load

4 KG Max

Control Output

RS-232
RS-422
BX-Lens
LanC

Power Requirement

DC 12V~ 18V, 3A (Without Camera)
DC 12V~ 18V, 5A (With Camera)

Power Supply

DC 12V, 24W Max

Operating Temp. Range

0~40 C°

Operating Humidity Range

10~80%

Storage Temp. Range

-10~60 C°

Storage Humidity Range

5~80%

Weight

3.4 kg

Dimension (LxWxH)

230 x 190 x 300 mm

Content

• 1x LANC Cable
• 1x HDMI Cable
• 1x BNC Cable
• 1x Power Supply with Cords
• Remote Controller
