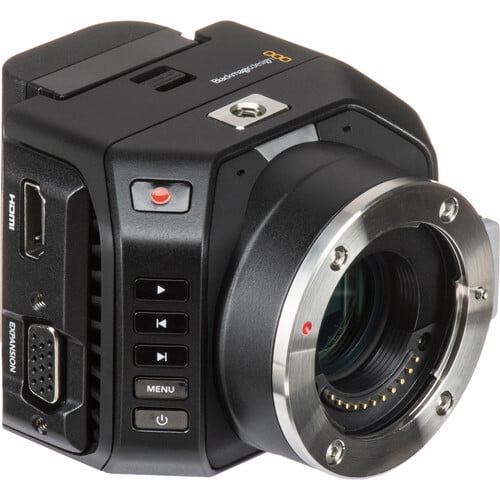

Blackmagic Design Micro Cinema Camera

Image Sensor Size

12.48 x 7.02 mm (Super16)

Sensor Resolution

Effective: 1920 x 1080

Advertised Dynamic Range

13 Stops

Lens Mount

Micro Four Thirds

Lens Communication

Yes

Built-In ND Filter

None

Built-In Microphone Type

Stereo

Recording Media

1 x SDXC Card Slot

Raw Recording

CinemaDNG:
1920 x 1080 at 23.98/24/25/29.97/30/50/60 fps (65 MB/s)

Recording Modes

ProRes 422 Proxy:
1920 x 1080p at 23.98/24/25/29.97/30/50/60 fps (5.6 MB/s)
ProRes 422 4:2:2:
1920 x 1080p at 23.98/24/25/29.97/30/50/60 fps (18.4 MB/s)
ProRes 422 4:2:2:
1920 x 1080p at 23.98/24/25/29.97/30/50/60 fps (27.5 MB/s)
ProRes 422 4:2:2:
1920 x 1080p at 23.98/24/25/29.97/30/50/60 fps (12.75 MB/s)

Video Connectors

1 x HDMI Output

Audio Connectors

1 x 1/8" / 3.5 mm Stereo Input

Other I/O

1 x DE-15/DB-15 LANC Data, Control, Monitor Input/Output
1 x USB Mini-B Data Input/Output

Battery Type

Canon LP-E6

Power Connectors

1 x Barrel Input

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Weight

11 oz / 311.8 g
