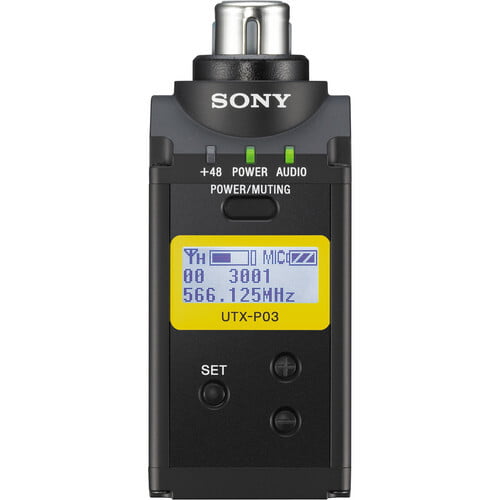

UTX-P03( UWP-D XLR plug-on transmitter
The Sony UTX-P03 Plug-On Transmitter features an all-metal chassis, an easy to read LCD display, a wide switching RF bandwidth, USB power and charging options, automatic channel scanning, infrared synchronization between transmitter and receiver, a Mic/Line switchable input, +48V phantom power, and digital companding circuitry.
Specification
Type of System | Camera-mountable UHF synthesized wireless plug-in system |
RF Carrier Frequency Range | 566 to 608 and 614 to 638 MHz |
RF Bandwidth | 66 MHz |
Approx. Working Range | Not Specified by Manufacturer |
Transmitter
Type of Transmitter | Crystal-controlled PLL synthesizer plug-on transmitter |
Antenna Type | Integral |
Emission | F3E |
RF Power | 30 mW / 5 mW |
Type of Input Connector | Mic/Line Switchable - 3-pin XLR female |
Phantom Power | +48 V |
Reference Input Level | Mic: -60 dBV (at 0 dB attenuator level) |
Adjustment Range | Mic input: 0 to 21 dB (in 3 dB steps) |
Frequency Response | 23 to 18,000 Hz (typical) |
Signal to Noise Ratio | 96 dB (max deviation, A-weighted) |
Audio Delay | Approximately 0.35 msec |
Pilot Tone | 32 kHz / 32.382 kHz / 32.768 kHz |
Interchangeable Mic Heads | Standard XLR type microphones |
Display | LCD |
Power Requirements | 3.0 VDC (with two AA-size alkaline LR6 batteries) |
Battery Type/Approx. Life | Approximately 8 hours with Sony's AA-size alkaline (LR6) batteries at 77°F (25°C) at 30 mW output |
Operating Temperature | 32 to 122°F (0 to 50°C) |
Storage Temperature | -4 to 131°F (-20 to 55°C) |
Dimensions (W x H x D) | 1.65 x 1.65 x 4.02" (42 x 42 x 102 mm) |
Weight | Approximately 6.9 oz (197 g) including batteries |
Packaging Info
Package Weight | 1 lb |
Box Dimensions (LxWxH) | 9.6 x 5.6 x 3.5" |
