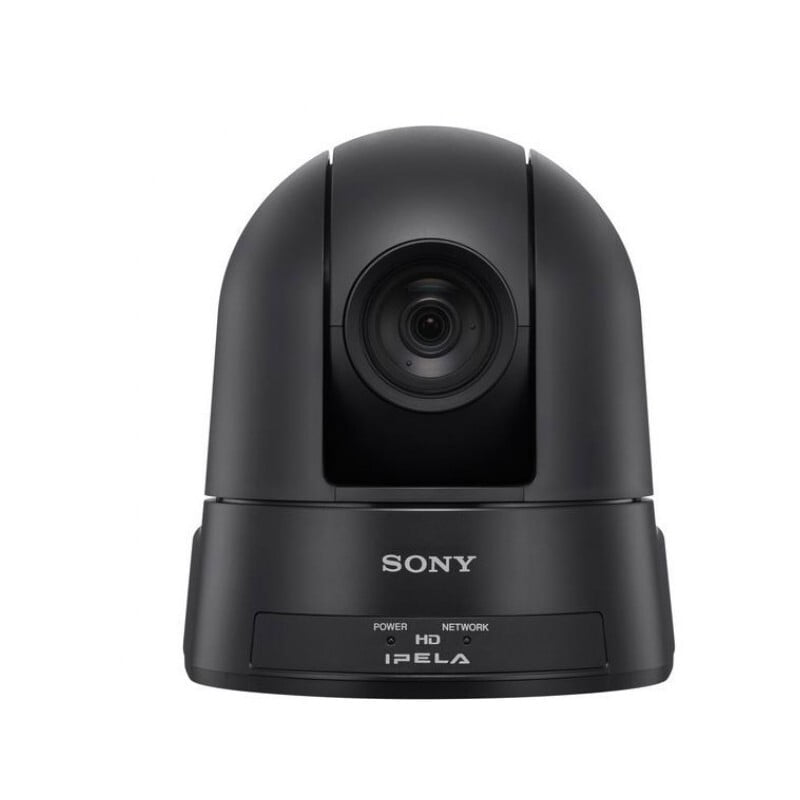

Sony - SRG-300SEC - Remote Camera

Sensor

1/2.8" Exmor CMOS Image Sensor

Resolution

Approx. 2.1 Megapixels

Signal System

720p 25/29.97/50/59.94
1080i 50i/59.94
1080p 25/29.97/50/59.94

Minimum Illumination

1.4 lux (50IRE, F1.6, 30 fps)

Signal to Noise Ratio

50 dB

Gain

Auto, Manual
0 to 43 dB

Shutter Speed Range

1/10000 to 1/1 sec

Exposure Control

Auto, Manual, Priority AE (Shutter, Iris), Exposure compensation, Bright

White Balance

Auto, Indoor, Outdoor, One-Push Auto, ATW, Manual

Image Stabilization

Selectable On/Off

Image Flip

Selectable On/Off

ICR

Auto

Wide-D

Yes

Sync

Internal

Audio

Input: 1 x Mono mini jack

HD

Simultaneous 3G-SDI & IP H.264
Network Port:1 x RJ-45 (10BASE-T/100BASE-TX)

Audio

1 x RCA (Mono)

Camera Control

RS-422
1 x VISCA

LAN
1 x RJ-45

Lens

Focal Length
f = 4.3-129mm (f/1.6 to f/4.7)

Zoom Ratio
Optical: 30x
Digital: 12x

Minimum Object Distance
Wide: 0.39" (10 mm)
Tele: 47.2" (1200 mm) Horizontal Viewing Angle
65° at the Wide End of the Lens

Focusing System
Auto / Manual

Pan/Tilt

Pan Angle
-170 to +170°

Tilt Angle
-20 to +90°

Pan Speed
100°/sec
Tilt Speed
90°/sec

Presets

VISCA: 16
Remote Control: 6

Mounting

Less than ±15° to the horizontal surface

Ceiling Mount Bracket

2 x Brackets included

Desktop Mounting

Install on a solid level flat surface, ensure camera does not fall

Tripod Mount

1 x 1/4"-20 threaded female receiver

Temperature

Operating Temperature
32 to 104°F (0 to 40°C)

Storage Temperature
-4 to 140°F (-20 to 60°C)

Power Requirements

10.8 to 13.2 VDC

Power Consumption

16.8 W

Dimensions (WxHxD)

6.25 x 6.50 x 6.50" (157 x 164 x 164 mm)

Weight

3.1 lb (1.4 kg)

Codecs Supported

Generic HDMI & Control Device

Connectors

Camera Module
Ethernet: 1 x RJ-45
Link: 1 x RJ-45
Video Input: 1 x HDMI Type-A

Head-End Module
Port1: 1 x RJ-45
Port2: 1 x RJ-45
Link: 1 x RJ-45M
Video Output: 1 x HDMI Type-A

Power

12 VDC

Dimensions

Camera Module: 3.75 x 1.5 x 3.63" / 9.53 x 3.81 x 9.21 cm
Head-End Module: 2.5 x 0.88 x 3.69" / 6.35 x 2.22 x 9.37 cm
