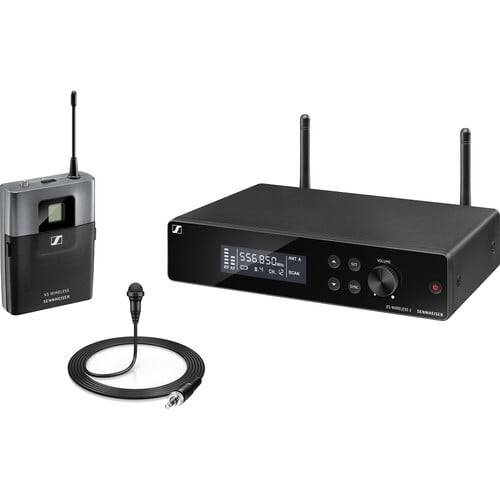

Sennheiser XSW2-ME2 Wireless Lavalier Microphone System (A: 548 to 572 MHz)
- Dimensions
approx. 200 x 42 x 127 mm
- Weight
approx. 680g
- Power supply
12 V DC nom. / 300 mA
- Housing
Metal
- AF frequency response
50 to 16,000 Hz
Transmitter
- Dimensions
approx. 71 x 96 x 28 mm
- Weight
approx. 95g
- Operating time
approx. 10 hrs
- Power supply
2 AA size batteries, 1.5 V
- Housing
Robust ABS
- AF frequency response
50 to 16,000 Hz (–3 dB)
- Microphone
Condenser
- Frequency response
50 to 16,000 Hz (–3 dB)
- THD, total harmonic distortion
≤ 0.9%
- Pick-up pattern
Omni-directional
- Signal-to-noise ratio
≥ 103 dBA
- RF output power
10 mW
- Switching bandwidth
up to 24 MHz
- Modulation
Wideband FM
- Output voltage
'1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Diversity reception
True Diversity
- Frequency
8 frequency banks, each with up to 12 factory-preset channels
- Frequency range
A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
- Sensitivity
< 3 μV at 52 dB(A)rms S/N
- Squelch
switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
- Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)
- Adjustment Range Transmitter
0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range
40 dB, adjustable in 5-dB steps
- Line / Mic level
20 dB, switchable
- Temperature Range
operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle
double superheterodyne
