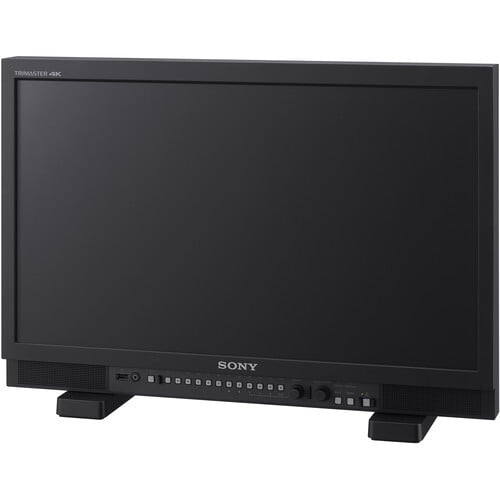

Sony PVM-X2400 4K HDR Trimaster High-Grade Picture Monitor (24")
Specification
Display
Number of Displays | 1 |
Panel Type | TFT LCD |
Display Size | 24.00" / 61.0 cm |
Active Area | 20.93 x 11.78" / 531.6 x 299.1 mm |
Screen Resolution | 3840 x 2160 |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 178° (89/89) |
Touchscreen | Yes |
Maximum Brightness | 1000 cd/m2 |
Dynamic Contrast Ratio | 1,000,000:1 |
Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
Pixels Per Inch (ppi) | 183 ppi |
I/O
Video | 2 x BNC (12G-SDI/6G-SDI/3G-SDI/HD-SDI) Input |
HDCP Support | Yes, Version 2.3 |
Audio | 1 x 3.5 mm Monitor Output |
Built-In Speaker | 2 x 2 W |
Power | 1 x 3-Pin XLR Input |
Other I/O | 1 x Parallel (RJ45) Input |
Card Slot | None |
Power
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 22 to 32 VDC |
Battery Type | None |
Mounting
Rack Form Factor | 9 RU |
Environmental
Operating Humidity | 30 to 85% |
Operating Temperature | 32 to 95°F / 0 to 35°C |
Storage Humidity | 0 to 90% |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General
Dimensions (W x H x D) | 22.36 x 15.91 x 7.05" / 56.8 x 40.4 x 17.9 cm |
Weight | 23 lb / 10.43 kg |
Warranty Length | Limited 1-Year Warranty |
Packaging Info
Package Weight | 28.695 lb |
Box Dimensions (LxWxH) | 27.3 x 22.3 x 13.2" |
