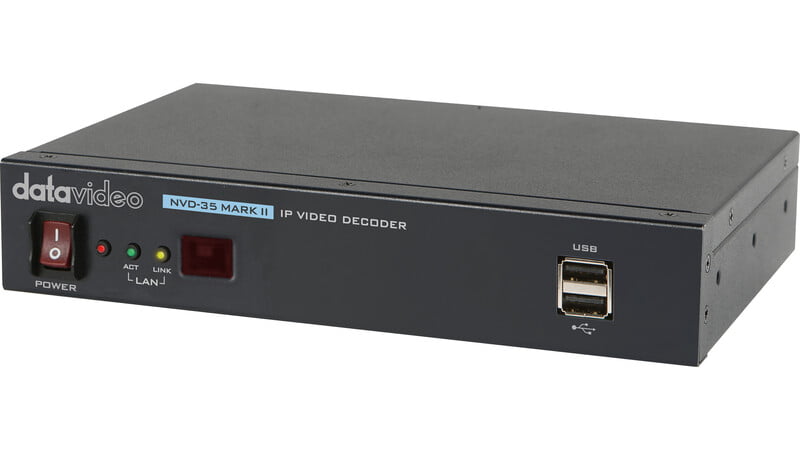

Datavideo NVD-35MKII SDI IP Video Decoder
$719.00
Tags:
NVD-35 MARK II decodes all common streaming protocols, directly from YouTube Live, UStream, Dailymotion, Livestream, Twitch and other major CDNs, and skips all third-party ads.
Product Details
SPECIFICATION
Model Number
NVD-35 MARK II
Audio/Video Input
Stream Input
· RTSP over UDP (Unicast / Multicast)
· RTSP over TCP
· RTSP over HTTP
· SRT (Secure Reliable Transport) caller
· MPEG-TS over UDP
· RTMP Pull
· RTMP Push (Internal Server)
· UDP raw (Unicast/Multicast)
· HLS over HTTP
· MPEG-TS over TCP Pull
· Video sharing websites
· RTSP over UDP (Unicast / Multicast)
· RTSP over TCP
· RTSP over HTTP
· SRT (Secure Reliable Transport) caller
· MPEG-TS over UDP
· RTMP Pull
· RTMP Push (Internal Server)
· UDP raw (Unicast/Multicast)
· HLS over HTTP
· MPEG-TS over TCP Pull
· Video sharing websites
Audio Output
2 x RCA(L/R)
SDI embedded audio
SDI embedded audio
Video Output
Composite (analogue)
SDI (digital)
SDI (digital)
Network Feature
1x RJ-45 Female (10/100M Ethernet) DHCP/Static IP
Supported Video Resolution
1080p 60/59.94/30/29.97/25/24
1080i 60/59.94/50
720p 60/59.94/50
576i 50 (PAL)
480i 60 (NTSC)
1080i 60/59.94/50
720p 60/59.94/50
576i 50 (PAL)
480i 60 (NTSC)
Supported Decoding Resolution
Up to 1080p60/50
Control
Web browser UI for configuration and control.
TCP/IP Socket commands
TCP/IP Socket commands
Update
Automatic firmware upgrade
Power
Input AC 100~240V Switching Adaptor
Output DC 12V / 1A
Output DC 12V / 1A
Environmental Conditions
Operating temperature: 0~40°C, Storage temperature: -10~60°C
Dimension (LxWxH)
220 x 143 x 47 mm
Weight
1 kg
Power
DC 12V, 1A
What's in the Box
1 x NVD-35 MARK II product
1 x AD Switch DC 12V
1 x Remote Control
1 x AD Switch DC 12V
1 x Remote Control
