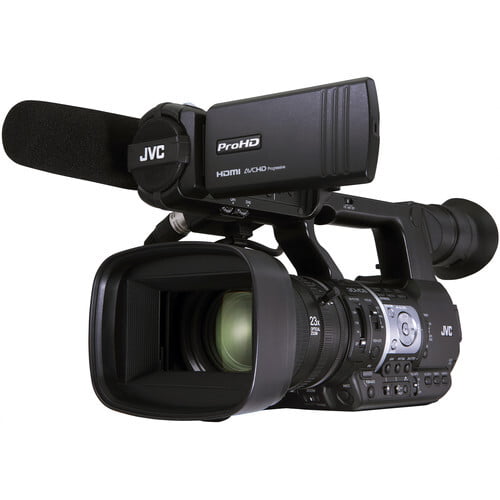

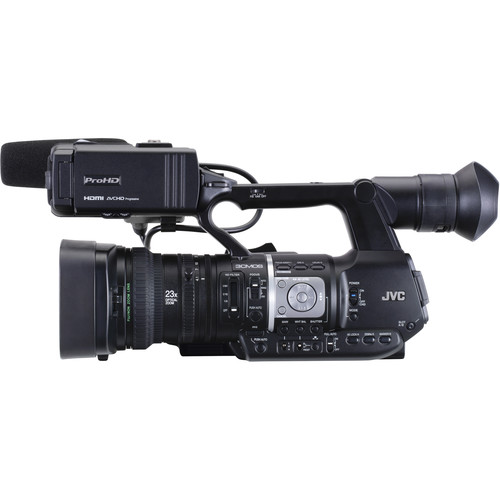

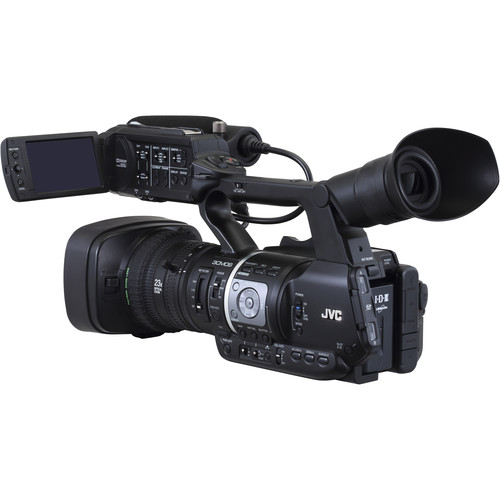

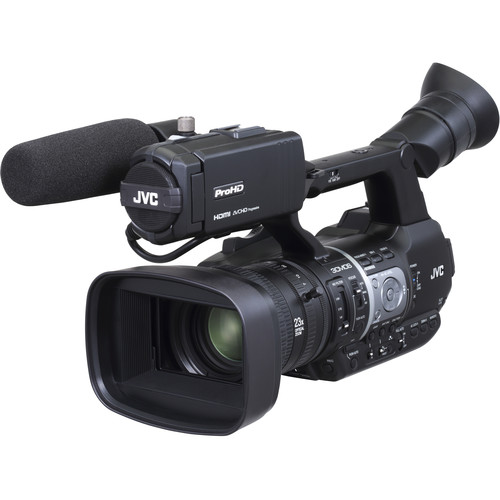

JVC GY-HM620E Solid state Handheld camcorder with 23x zoom
JVC GY-HM620E (GYHM620E) Handheld ProHD Camcorder with a 1/3-inch CMOS Sensor and Integrated 23x Zoom Fujinon Lens. Please Note: Firmware version 1.05 is now available. See details below: Newly designed 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
SPECIFICATION
GENERAL |
|
Power: | DC 12V (AC adaptor), DC 7.2V (Battery) |
Power consumption: | Approx. 10W(with VF in single REC mode and default setting) |
Dimensions (W x H x D): | 178 x 198 x 416 mm (7" x 7-13/16" x 16-3/8") |
Mass: | Appro.2.4kg (5.3lbs), (Including battery) |
Operating temperature: | 0˚C to 40˚C (32˚C to 104˚C) |
Storage temperature: | -20˚C to 50˚C (14˚C to 122˚C) |
Operating humidity: | 30% to 80% RH |
Storage humidity: | Under 85% |
CAMERA | |
Image sensor: | 1/3" 2.2M pixels progressive scan 3CMOS |
Synchronizing system: | internal synchronization |
Stabilizer: | Optical image stabilizer |
Lens: | Fujinon F1.6-3.0, 23x, f="4.1-94.3mm" (35mm conversion: 29 to 667mm) |
Sensitivity: | F12 (60Hz) /F13 (50Hz), 2000lx (typical) |
Minimum illumination: | 0.15lx (typical) (1920 x 1080 mode, F1.6, Lolux mode, 1/30 or 1/25 shutter) |
Filter diameter: | 72mm |
Shutter speed: | 1/4 to 1/10000 |
Gain: | -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24 dB, Lolux, ALC |
ND filter: | Clear, 1/4, 1/16, 1/64 |
LCD display: | 3.5” 920K pixels, 16:9 |
Viewfinder: | 0.45” 1.22M pixels, 16:9 |
VIDEO/AUDIO RECORDING | |
Recording media: | 2x SDHC/SDXC memory card Class 4/6/10 (Class4 for AVCHD and H.264 only) |
Video codec: | MPEG-2 Long GOP (HD), MPEG-4/AVC H.264 (HD/SD) |
File format: | MOV (HD/SD: H.264), MP4 (XDCAM EX), MTS (AVCHD) |
Recording mode: | MPEG-2 Long GOP |
NTSC Settings | |
HQ mode: | 1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i, |
1280 x 720/59.94p, 29.97p, 23.98p | |
SP mode: | 1440 x 1080/59.94i (25Mbps), 1280 x 720/59.94p (19Mbps) |
HQ mode: | 1920 x 1080/50i, 25p, 1440 x 1080/50i, 1280 x 720/50p, 25p |
SP mode: | 1440 x 1080/50i (25Mbps), 1280 x 720/50p (19Mbps) AVCHD |
HQ mode: | 1920 x 1080/59.94i, SP mode: 1920 x 1080/59.94i |
PAL Settings | |
HQ mode: | 1920 x 1080/50i, SP mode: 1920 x 1080/50i SD (MPEG-4/AVC H.264) |
NTSC setting: | 720 x 480/59.94i (GY-HM600U only) |
PAL setting: | 720 x 576/50i (GY-HM600E only) |
Audio recording | LPCM 2ch, 48 kHz/16-bit (MPEG-2 Long GOP/MPEG-4 |
AVC H.264), Dolby Digital 2ch, 48kHz/16-bit, 256kbps (AVCHD) | |
INTERFACE | |
Video output: | AV output, SDI output (BNC x1), HDMI output x1 |
Audio input: | XLR x2 (MIC, +48V/LINE), ø3.5mm mini jack x1 |
Audio output: | AV output |
Headphone: | ø3.5mm mini jack x 1 |
Time code link input/output: | RCA x 1 |
Remote: | ø2.5mm mini jack x 1 |
USB: | Mini-USB2.0, Type-B |
