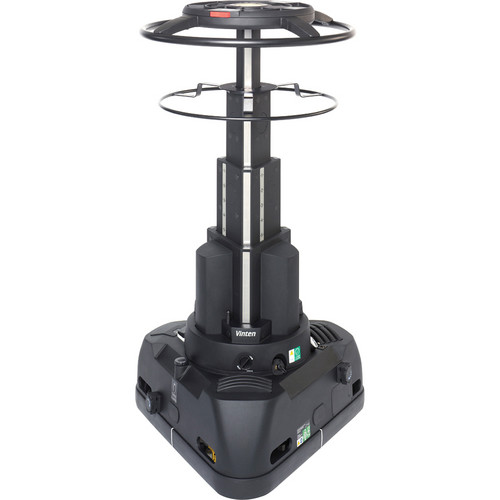

VInten Quattro SE Gen assy, blk, ROW

Maximum Load Capacity

187 lb (85 kg)

On-Shot Stroke

39.4" (100.0 cm)

Transit Doorway Width

With Small Steering Ring: 29.3" (74.5 cm)
With Large Steering Ring: 32.3" (82.0 cm)

Clearance

Ground Clearance: 0.8" (2.0 cm)

Cable Guards

Single Point Action

Repeatability

X & Y +/- 70mm+/- 1° (triangle move)

Degrees of Freedom

Pedestal Only: 4 (X, Y, Z, and Base Orientation)
Included in Serial Protocol Output: 4 (P, T, Z, and F)

Resolution

X, Y, Z: ±<1mm
Orientation: ± 0.02°

Height

Maximum Height: 58.9" (149.8 cm)
Minimum Height: 19.6" (49.8 cm)

Dimensions

58.9 x 29.3" (149.8 x 74.5 cm)

Weight

Without Trim Weights: 300.6 lb (136.3 kg)
