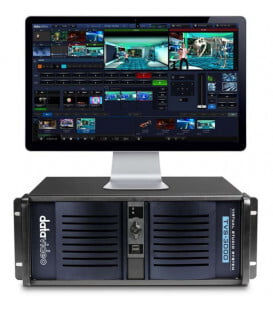

Datavideo TVS-3000X Tracking virtual Studio System w/o tracker
Most virtual studio solutions require expensive designated tracking devices or cranes with built in encoders. These devices are very expensive and require trained and skilled personnel. TVS-3000 uses cost effective trackers from HTC which are also being used in VR setups.
SPECIFICATION
Model Number
TVS-3000
Tracking/Trackless
Tracking & Trackless
Video Input
4K mode:
6G-SDI x 2 or 12G-SDI x 1
HD mode:
3G-SDI x 3
Video Output
4K mode:
HDMI 2.0 x 1
HD mode:
3G-SDI x 1 + HDMI x 1
Video Input/Output Format
SDI Input/Output:
2160p 60/50/30/25 (Input only)
1080p 30/25
1080i 60/50
720p 60/50/30/25
HDMI Output:
2160p 60/50/30/25
1080p 60/50/30/25
720p 60/50/30/25
Audio Input
Mini Phone Jack x 1
SDI audio embedded
Operation Monitor
DP x2
Tally
Coming Soon
Media
3(DDR)
Virtual Studio
10 & Unlimited download from datavideovirtualset.com
Still Picture
1
Still Text
2
Keyer
Chromakey upto 8CH
Recording
Lossless 4:2:2 (.avi)
H.265 (.mov)
H.264 (.mp4;.wmv)
MPEG-2 (.ts;.mxf)
Live Streaming Protocols
TS over UDP
TS over TCP
RTMP
RTMPS
RTSP
Hard Disk Capacity
4TB HDD + 500G SSD
Dimension (LxWxH)
480 x 470 x 178mm
Weight
13.6 kg
Operating Temp. Range
0~40 °C
Power
AC 100-240V 750W
What's in the Box
1 x TVS-3000A Main Unit
1 x Power AC Cord
1 x USB Mouse
1 x RMC-285 Unit(Include D-Sub 9 PIN Cable + DC 12V power adaptor)
1 x 802.11AC Antenna / or USB dongle
1 x LBK-2
