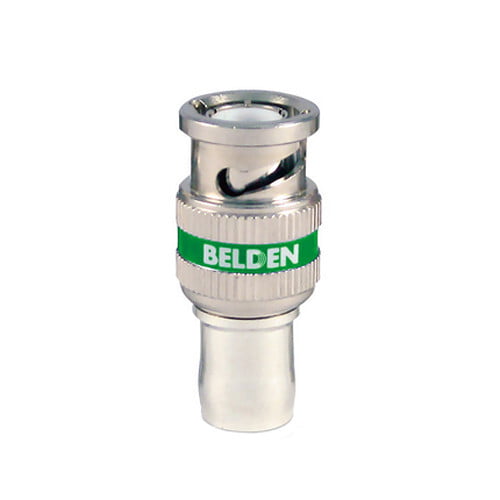

Belden HD BNC Compression Connector for 1694A RG6 Coax Cable (50-Pack)
This HD BNC Compression Connector 50-pack from Belden is compatible with Belden 1694A RG6 coax cables. These brass connectors feature a better than -20 dB at 4.5 GHz return loss with their solid insulator materials to deliver professional, high-definition broadcast audio and video. Their one-piece design and 360° compression rings make for fast and easy installation, while their green ring color-coding helps identify compatibility with 1694A RG6 cables.
Connector Type | BNC Coaxial |
Compatibility | Belden 1694A RG6 Coax Cable |
Body Type | Straight Plug |
Contact Material | Brass |
Contact Plating | Gold |
Termination | Compression |
Impedance | 75 Ohms |
Voltage Rating | 500 VRMS |
Return Loss | 1 to 4.5 GHz / <-22 to -32 dB |
Insulation Resistance | >5000 Megohms at 100 VDC |
Durability | 500 Cycles |
Cable Retention Force | >100 lb / 45 kg |
Finish | Body/Bayonet: Brass, Nickel-Plated |
Packaging Info
Package Weight | 0.77 kg |
Box Dimensions (LxWxH) | 10.6 x 5.9 x 1.7" |
