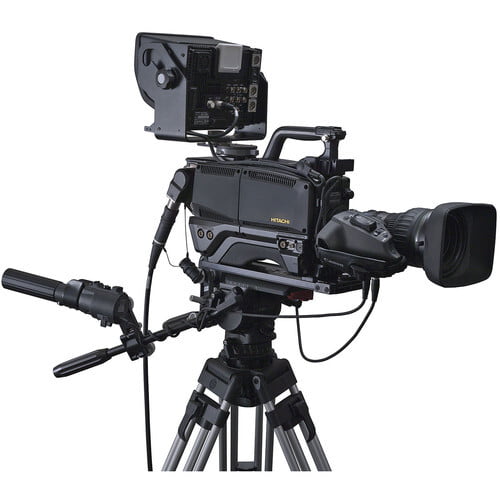

Hitachi Z-HD5000 Camera Fiber Optic Studio KIT W /Fujinon XA20Sx8.5BRM LENS

Imaging Device

2/3", 16:9, 1 MP Super-Advanced micro-lens IT-CCD (3X - RGB)

TV System

1920 x 1080 / 59.94i

Optical System

F1.4 prism

Optical Filter

1 x manual filter wheel w/4 filter positions
Clear, Cross, 1/16ND, 1/64ND
ECC (Electronic Color Corrector) with 5 settings
3200K, 4300K, 5600K, 6300K, 8000K

Sensitivity

F10 @ 2000 lux, 3200K, 89.9% reflectance

Signal to Noise Ratio

58 dB

Horizontal Resolution

> 800 TVL (1080i)

Registration

Overall 0.05% (excluding lens limitations)

Gain Selection

L (Low): -3, 0 dB
M (Medium): 0, +3, +6, +9, +12, +15, +18, +21 dB
H (High): +3, +6, +9, +12, +15, +18, +21, +24 dB

Electronic Shutter

1/59.94 sec Off, 1/100, 1/250, 1/500, 1/1000, 1/2000, AES, CC Frame

Power Consumption

16 W head only (without VF, lens)

Operating Temperature

14 to 113°F (-10 to 45°C)

Input & Output

1 x BNC HD-SDI VF out (Character On/Off) or HD-SDI RET out
4-pin Multi connector for remote control panel
20-pin Multi VF connector
3-pin XLR MIC-1 connector
SD memory card slot

Dimensions

5.2 x 7.5 x 10.3" (133 x 191 x 262 mm)

Weight

4.8 lb (2.2 kg)

Screen Size

7" (178 mm)

Resolution (H x V)

1280 x 800

Dot Pitch

0.117 x 0.117 mm

Aspect Ratio

16:9 / 4:3 switchable

Color Depth

8-bit, 16.7 million colors

Brightness

400 cd/m²

Contrast

800:1

Response Time

12 ms

Viewing Angle

178°/178°

Voltage Input

12 VDC, VF main line power supply

Power Consumption

<11 W

Dimensions

8.14 x 5.94 x 2.3" (207 x 151 x 60 mm)

Weight

<2.2 lb (<1 kg)

Genlock

BNC, B-BST 0.45 V p-p/75 Ohms (loop through)
HDTV tri-level sync 0.60 V p-p/75 Q (loop through)

Digital Return 1/2

BNC, HD-SDI, or SD-SDI

Prompter Input

BNC, VS, or VBS 1.0 V p-p/75 Ohms (loop through)

Intercom

5-pin XLR, -60 dBm

Communication

1 x D-sub 25-pin
Intercom: 0 dBm, 600 Ohms / 4 Wire, 0 dBu, or -15 dBu, 200 Ohms with 2-wires
PGM: 0 dBm, 600 Ohms
R/G TALLY: Contact or DC supply
Digital Output: 2 x BNC, HD-SDI (embedded audio available), 4 x BNC, HD-SDI or SD-SDI selectable (embedded audio available), HD-SDI or SD-SDI selectable PIX (embedded audio available)

Connectors

Mic Output 1: 1 x XLR, 3-pin, 0 dBm/ 600 Ohms
Mic Output 2: 1 x XLR, 3-pin, 0 dBm/ 600 Ohms
Intercom (Headset): 1 x XLR, 5-pin, 0 dBu Maximum 15 dB
Remote 1: 1 x 4-pin, 1.5 V p-p
Remote 2: 1 x 4-pin, 1.5 V p-p
RS-232C: 1 x D-sub 9-pin 9600 band
Mic Remote: 1 x D-sub 15-pin, Mic 1.2 gain
TALLY OUT (R/G Tally): 1 x D-sub 9-pin, Contact 24 VDC 10 mA
WFM Control: 1 x D-sub 15-pin, WFM 0-7, 0/5 V

Maximum Cable Distance

3280' (1000 m) with CCU power

Power Supply Voltage

117 VAC @ 60 Hz

Operating Temperature

32 to 104°F (0 to 40°C)

Weight

19.8 lb (9 kg)

CCU

1 x Type HFOC female connector (LEMO/Tajimi Type)
SMPTE-304M-type

Video Transmitter

Fully digital, bi-directional, 10-bit, 4:2:2 sampling, SMPTE-274M

Intercom

2 x channel, 5-pin each XLR, channel selection, Mic on/off, volume

Audio

2 x, PGM audio level controls with Channel 1 and 2 intercom mix

Power Output

Teleprompter: 1 x 5-pin, 230 VAC, 60 to 100 W, external prompter Tally drive out (depending on configuration accessories)

Microphones

Channel 1 & 2 Line or MIC level select (Menu), with phantom power on/off

Switcher

Return / Aux: 2-channel, 4-input remote AUX/VF video select connector (RET control)

Video Input & Outputs

2 x HD-SDI out, 1 x SD analog teleprompter out switchable with, 1 x Genlock in (Tri-level)

Other I/O

1 x 29-pin (for SA-1000 cable-less interface)
1 x 4-pin script lamp 12 VDC (1.0 A maximum)
1 x 5-pin VF AUX return (for use in cranes or extended Head/VF configurations)
1 x 4-pin XLR, 12 VDC, power input

Weight

4.8 lb (2.2 kg)

Power Input

12 VDC

Operational Temperature

32 to 104°F (0 to 40°C)

Dimensions

VR Knob: 4.56 x 7.16 x 2.4" (116 x 182 x 60 mm)

Weight

3.3 lb (1.5 kg)

Camera Format

2/3"

Focal Length

8.5 to 170mm

Zoom Range

20x

Maximum Relative Aperture

1:1.8 (8.5 to 113 mm)
1:2.7 (170 mm)

M.O.D. from Image Plane

3.6' (1.1 m)

M.O.D. from Front of Lens

2.9' (0.9 m)

Object Dimensions at M.O.D. (16:9)

8.5mm: 35.8 x 20.1"(910 x 511 mm)
170mm: 1.8 x 1.0" (47 x 26 mm)

Angular Field of View (16:9)

8.5mm: 58°51' x 35°11'
170mm: 3°14' x 1°49'

Filter Thread

M82 x 0.75

Dimensions

3.3 x 7.12" (85 x 180.8 mm)

Weight

3.26 lb (1.48 kg) lens hood included
