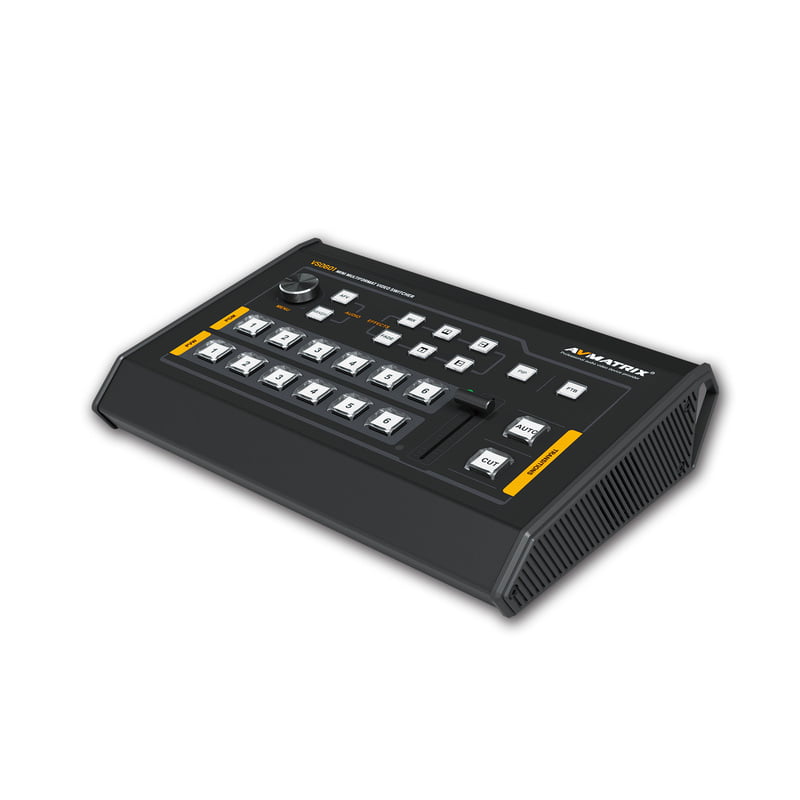

AvMatrix 6CH Mini Multi-Format Streaming Video Switcher with UVC

Effect Types

1 x Transition

Switching Type

T-Bar

Processing Resolution

1080p

Number of Video Input Sources

6

Video Input Connectors

4 x BNC (3G-SDI / HD-SDI / SD-SDI) Female
2 x HDMI Female

Input Video Format

HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576p 50 fps
PAL 50 fps
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
PAL 50 fps
NTSC 59.94 fps

Audio Input Connectors

1 x 1/8" / 3.5 mm TRS Stereo Analog Female
1 x 2RCA Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

HDMI
SDI

Video Output Channels

6

Video Output Connectors

2 x BNC (3G-SDI / HD-SDI / SD-SDI) Female (Program)
1 x HDMI Female (Program)
2 x BNC (3G-SDI / HD-SDI / SD-SDI) Female (Monitor)
1 x HDMI Female (Monitor)
1 x USB Type-C (USB Video) Female (Program)

Output Video Format

HDMI / SDI / USB Type-C
1080p at 24/25/30/50/60 fps
1080i 50/60 fps

Audio Output Connectors

1 x 2RCA Stereo Analog Female
1 x 1/8" / 3.5 mm TRS Stereo Analog Female

Output Audio Format

Analog

Embedded Audio Output

HDMI: 2-Channel (per Output)
SDI: 2-Channel (per Output)
USB Type-C: 2-Channel

Multiview Output

6-Way Multiview viaHDMI, SDI

Other I/O

1 x DE-15/DB-15 Tally Input
1 x RJ45 LAN Input/Output

Video Standard Compliance

SMPTE 259M/292M/424M

HDCP Support

None

OS Compatibility

Windows 7 or Later
macOS
Linux
*As of October, 2021: check with manufacturer for the most up-to-date compatibility

Power Connector

1 x Barrel (12 VDC at 1.2 A) Input

Power Consumption

Power Supply: 12 VDC at 2 A

Operating Temperature

-4 to 140°F / -20 to 60°C

Storage Temperature

-22 to 158°F / -30 to 70°C

Dimensions

9.81 x 6.78 x 2.2" / 24.92 x 17.23 x 5.5 cm

Weight

2.6 lb / 1.2 kg

Package Weight

Box Dimensions (LxWxH)

12.6 x 10.3 x 4.8"
