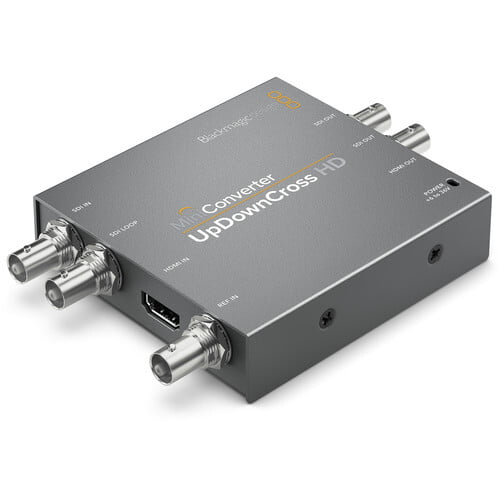

Blackmagic Design Mini Converter - UpDownCross HD

Video Input

3G/HD/SD-SDI: 1 x BNC
HDMI: 1 x Type A

Video Output

3G/HD/SD-SDI: 2 x BNC
Loop-Through Out: 1 x BNC
HDMI: 1 x type A

Reference Input

Black Burst & Tri-Level Sync: 1 x BNC

Reclocking

Yes

SDI Compliance

SMPTE 424M-B/296M/292M/259M
ITU-R BT.656/BT.601

SDI Video Sampling

4:2:2

SDI Color Space

YUV

SDI Audio Sampling

48 kHz, 24-bit

Supported Video Standards

SDI:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 24/23.98
1080i 60/59.94/50
720p 60/59.94/50

HDMI:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50

NTSC SD: 525i 59.94
PAL SD: 625i 50

Scaling

DVI Resolutions:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
625i 50
525i 59.94
1024 x 768
800 x 600
640 x 480

Power Supply

12 VDC

Operation Voltage

6 to 36 VDC

Power Consumption

5 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Relative Humidity

0 to 90%, non-condensing

Dimensions

5.32 x 3.63 x 0.9" / 13.5 x 9.2 x 2.3 cm

Weight

8.7 oz / 247 g
