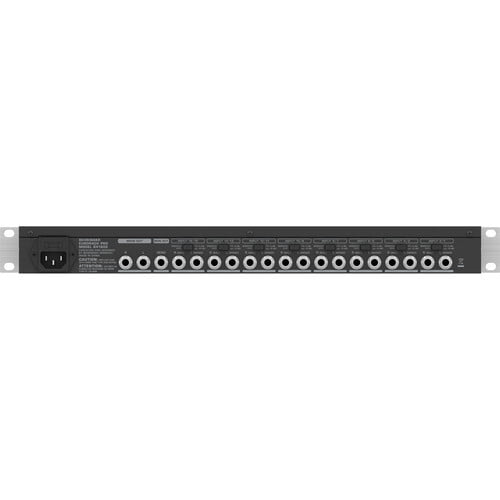

Behringer RX1602 V2 Rackmount Line Mixer (1 RU)

Audio Inputs

Type: 16 x 1/4" / 6.3 mm TRS connectors, electronically balanced, line level

Impedance: 20 kOhms balanced, 10 kOhms unbalanced (approximately)

Gain Range: -∞ to +15 dB

Operating Level: variable, +4 dBu/-10 dBV (switchable)

Maximum Input Level: +22 dBu

Common-Mode Rejection CMRR at 1kHz: 44 dB (typical)

Audio Outputs

Main Out (L/R):
Type: 2 x 1/4" / 6.3 mm TRS connectors, unbalanced

Gain Range: -∞ to +15 dB

Impedance: 120 Ohms (approximately)

Maximum Output Level: +22 dBu


Monitor Out Send (Mono):
Type: 1 x 1/4" / 6.3 mm TRS connector, unbalanced

Impedance: 120 Ohms (approximately)

Maximum Output Level: +22 dBu

Headphones Output

Type: 1 x 1/4" / 6.3 mm TRS connector, stereo

Minimum Load Impedance: 100 Ohms

System

Bandwidth: 20 Hz to 20 kHz ±0.2 dB

Frequency Range: 20 Hz to 200 kHz, +0/-3 dB

Signal-to-Noise Ratio:
THD: 0.0025% at +4 dB input, 1 kHz gain 1

Crosstalk:

Power Supply

Voltage: 120 V, 60 Hz

Power Consumption: 14 W, maximum

Fuse: 100-120 V, T 630 mAh

Mains Connection: Standard IEC connector

Dimensions

1.75 x 19.00 x 8.5" / 44.5 x 482.6 x 217 mm

Rack Space: 1 RU

Weight

5.46 lb / 2.48 kg

Package Weight

Box Dimensions (LxWxH)

20.75 x 12 x 4.5"
