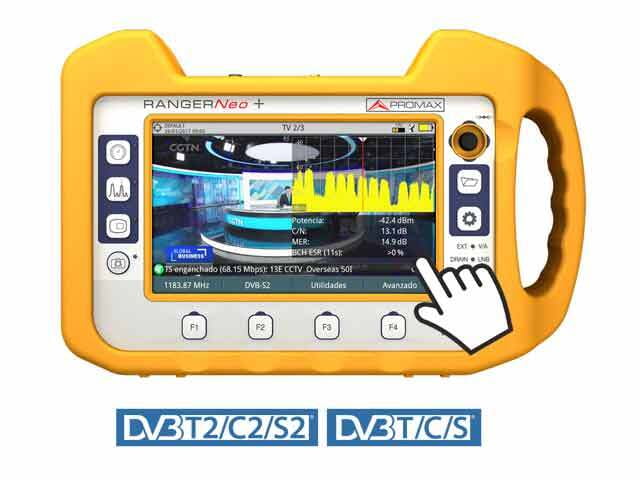

Promax RangerNeo+ Portable satellite analyzer

OPERATION MODES

Hybrid operation: 7” touch screen or conventional buttons

DIGITAL STANDARDS

• ISDB-T/Tb
• QAM annex B
• DVB-C
• DVB-S, DVB-S2, DVB-S2 multistream
• ISDB-T/Tb
• DSS, ACM/VCM/CCM

VIDEO CODECS

MPEG-2, MPEG-4 H.264, HEVC H.265

AUDIO CODECS

MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus

INPUTS AND OUTPUTS

• Universal RF connector 75 Ω
• HDMI output
• IP input for remote control
• Analogue Video/Audio input
• 2xUSB for data tranferring

FUNCTIONS

• 4K Frame grabber
• Merogram
• Spectrogram
• Signal monitoring
• Remote control (webControl)
• MER by carrier
• Video/Audio Streaming
• SCAN + TILT
• Shoulder attenuation
• Constellation diagram
• LTE ingress test
• Dynamic echoes analysis
• StealthID (instant identification of tuning parameters)
• PLS (Physical Layer Scrambling)
• Ultra fast spectrum analyzer (70 ms sweep time)
• MAX and MIN hold
• FM RDS radio measurement and decoding
• Screenshots and Datalogger for measurement reports
• Beacon-Flyaways for SNG & VSAT
• Wideband LNB
• WiFi 2.4 GHz
• LTE 1.8 GHz
• OTT
• Service recording
• Field strength measurement
• Task planner

RESOLUTION BANDWIDTHS

• 100, 200 kHz
• 1 MHz

OPTIONS

• DAB, DAB+
• GPS Coverage Analysis
• Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm
• OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
• WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input

PC CONNECTION (via ethernet interface)

• NetUpdate 4 (free software)
• Free and automatic firmware updates
• Remote control (webserver)
• User customised channel plans
• Measurement reports and screenshots
